Blustream HEX70CS-KIT AV extender AV transmitter & receiver Black
Blustream HEX70CS-KIT AV extender AV transmitter & receiver Black
Regular price
£474.50 GBP
Regular price
Sale price
£474.50 GBP
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability

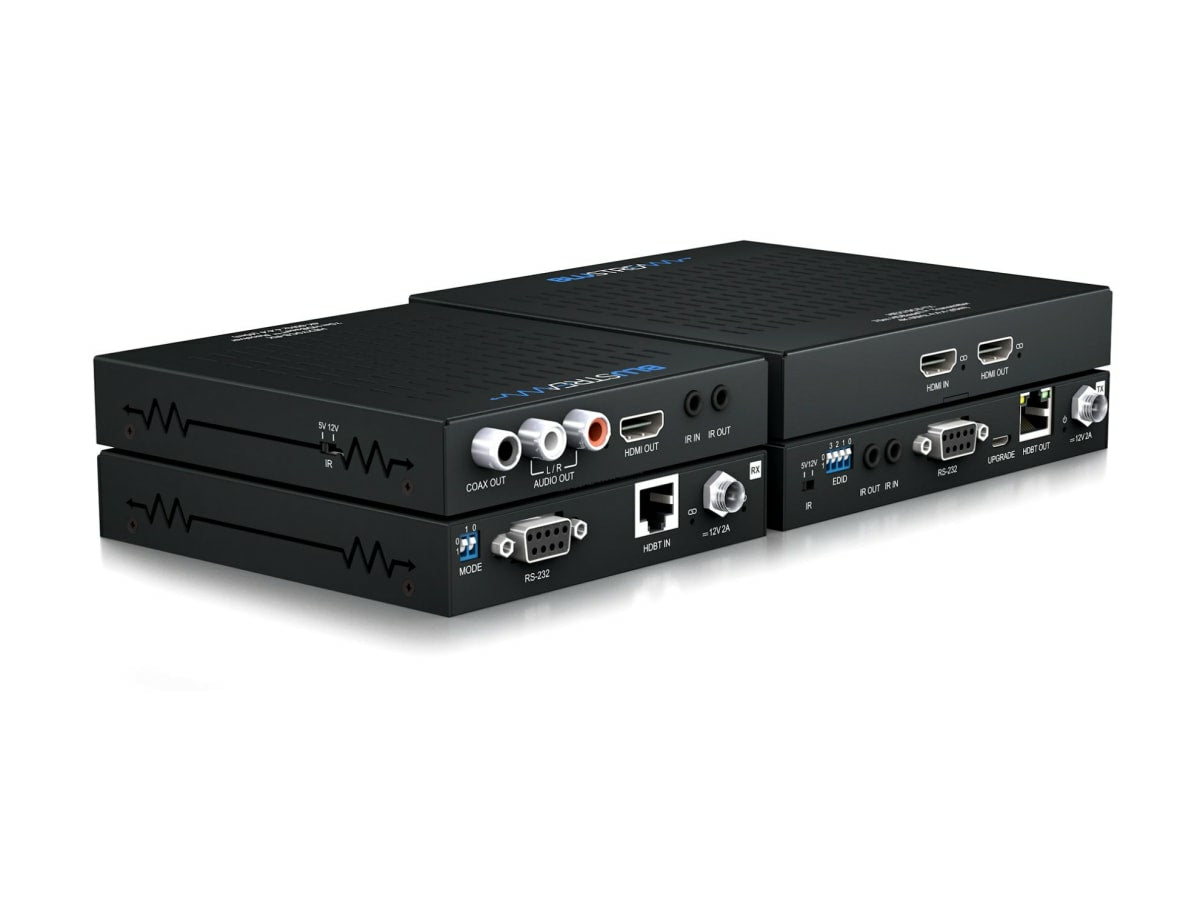

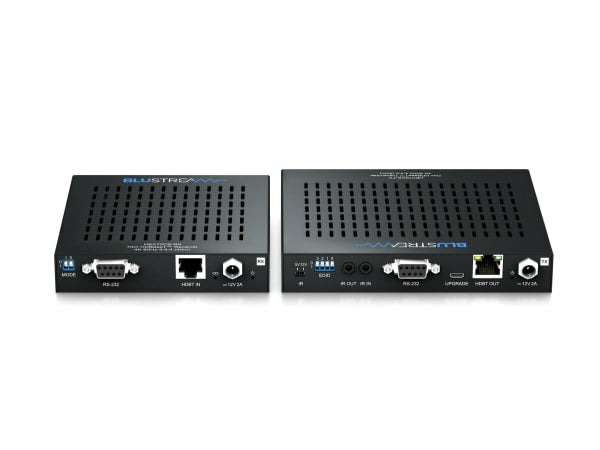

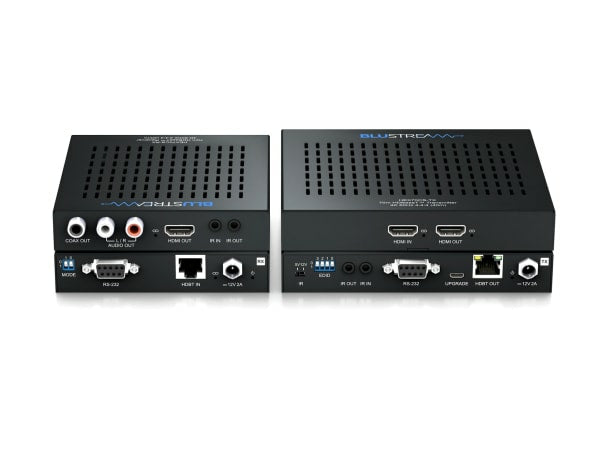

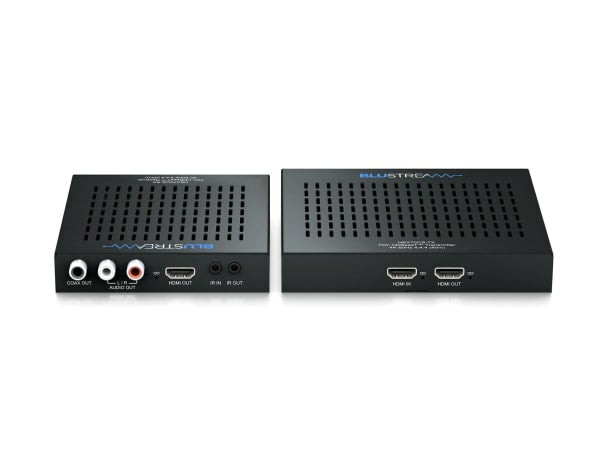

Our HEX70CS-KIT HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 HDBaseT extender set offers market leading features and outstanding value utilising CSC technology with video down conversion.
The product extends HDMI, Bi-directional IR & RS-232 and Bi-directional PoC up to lengths of 70m (4K to 40m). The transmitter includes a HDMI loop-out for integrating local displays or cascading to multiple devices. The receiver features simultaneous analogue stereo and digital coax audio breakout..
Specifications
| Features | |
|---|---|
| HDCP | Yes |
| Maximum refresh rate | 60 Hz |
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Maximum transfer distance | 70 m |
| Supported video modes | 1080p, 2160p |
| LED indicators | Yes |
| Bandwidth | 18 Gbit/s |
| Product colour | Black |
| Extended display identification data (EDID) | Yes |
| HDCP version | 2.2 |
| High Dynamic Range (HDR) supported | Yes |
| Technical details | |
| HDCP | Yes |
| Maximum refresh rate | 60 Hz |
| Ethernet LAN | Yes |
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Maximum transfer distance | 70 m |
| Supported video modes | 1080p, 2160p |
| Bandwidth | 18 Gbit/s |
| Product colour | Black |
| Connectivity technology | Wired |
| Quantity per pack | 1 pc(s) |
| Ports & interfaces | |
| 3.5 mm (1/8-inch) out | Yes |
| 3.5 mm (1/8-inch) in | Yes |
| Remote (IR) output | 2 |
| Remote (IR) input | 2 |
| HDBaseT port | Yes |
| Line outputs (RCA) | 2 |
| RS-232 output ports | 2 |
| Ethernet LAN | Yes |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 2 |
| HDMI version | 2.0 |
| Connectivity technology | Wired |
| Power | |
| Input current | 2 A |
| Power consumption (typical) | 12.7 W |
| Operating voltage | 12 V |
| Indication | |
| LED indicators | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
| Transmitter dimensions (WxDxH) | 143 x 141 x 22 mm |
| Receiver dimensions (WxDxH) | 113 x 138 x 22 mm |
| Weight | 350 g |
| Package weight | 1.4 kg |
| Packaging data | |
| Package weight | 1.4 kg |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| IR receiver included | Yes |
| Mounting kit | Yes |
| Quick start guide | Yes |
| AC adapter included | Yes |
| IR emitter included | Yes |
