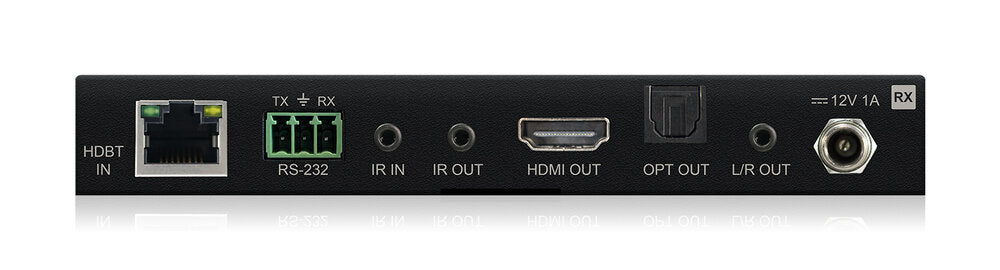

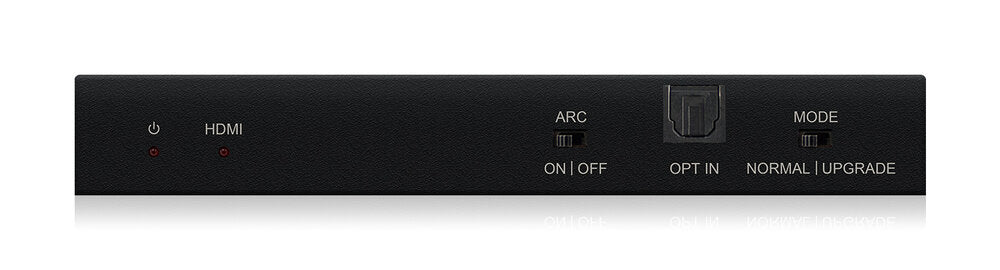

Blustream RX70CS AV receiver stereo Black

Our RX70CS HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 HDBaseT™ ARC Receiver offers market leading features and outstanding value utilising CSC technology.

The product extends HDMI, Bi-directional IR & RS-232 and is powered by the matrix up to lengths of 70m at 1080p (4K 18Gbps to 40m).

The Receiver features ARC support when used with compatible Blustream hardware and simultaneous analogue stereo and Optical Toslink audio breakout.

• Supports bi-directional PoC to power RX70CS from compatible Blustream HDBaseT™ transmitter / matrix products or provide power to HDBaseT™ transmitter when RX70CS is powered with local power supply
• HDCP 2.2 support
• Recommended receiver for the Blustream AMF42AU, C66CS and C88CS matrix products.

• Specifications

  Audio
  Receiver type	stereo
  Inputs
  Audio (L/R) in	1
  Remote (IR) input	1
  Ethernet LAN (RJ-45) ports	1
  Outputs
  Number of HDMI outputs	1
  Audio (L/R) out	1
  Remote (IR) output	1
  Ports & interfaces
  Speakers connectivity type	3.5mm
  RS-232 ports	1
  Video
  Supported graphics resolutions	640 x 512, 640 x 640, 640 x 160, 640 x 352, 640 x 360, 640 x 400, 640 x 480 (VGA), 640 x 544, 640 x 576, 640 x 960, 704 x 480, 704 x 576, 720 x 350, 720 x 400, 720 x 480, 720 x 576, 720 x 720, 752 x 582, 768 x 432, 768 x 448, 768 x 494, 768 x 576, 800 x 448, 800 x 450, 800 x 480 (WVGA), 800 x 500, 800 x 592, 800 x 600 (SVGA), 832 x 624, 832 x 642, 848 x 480, 854 x 480 (WVGA), 900 x 720, 960 x 960, 960 x 480, 960 x 540, 960 x 576, 960 x 720, 1024 x 576 (WSVGA), 1024 x 600, 1024 x 640, 1024 x 768 (XGA), 1024 x 800, 1032 x 452, 1056 x 144, 1080 x 1080, 1152 x 864 (XGA+), 1152 x 870, 1200 x 1600, 1200 x 1920, 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 768, 1280 x 800 (WXGA), 1280 x 800, 1280 x 960, 1280 x 1280, 1284 x 560, 1296 x 732, 1360 x 768 (WXGA), 1366 x 480, 1366 x 760, 1366 x 768, 1366 x 768, 1368 x 768, 1376 x 768, 1400 x 1050 (SXGA+), 1400 x 1080, 1400 x 900, 1440 x 1050, 1440 x 1080, 1440 x 234, 1440 x 900 (WXGA+), 1440 x 900, 1440 x 912, 1536 X 6144, 1536 x 2048, 1536 x 1536, 1600 x 1200 (UXGA), 1600 x 1280, 1600 x 600, 1600 x 900, 1600 x 904, 1680 x 1050 (WSXGA+), 1680 x 1056, 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 1920 x 502
  Supported video modes	480i, 1080p
  Technical details
  Audio Return Channel (ARC)	Yes
  Audio decoders	DTS-HD Master Audio, Dolby Atmos, Dolby TrueHD
  Product colour	Black
  Power
  AC input voltage	12 V
  Weight & dimensions
  Width	140 mm
  Depth	98 mm
  Height	18 mm
  Weight	500 g
  Operational conditions
  Operating temperature (T-T)	-5 - 55 °C
  Storage temperature (T-T)	-25 - 70 °C
