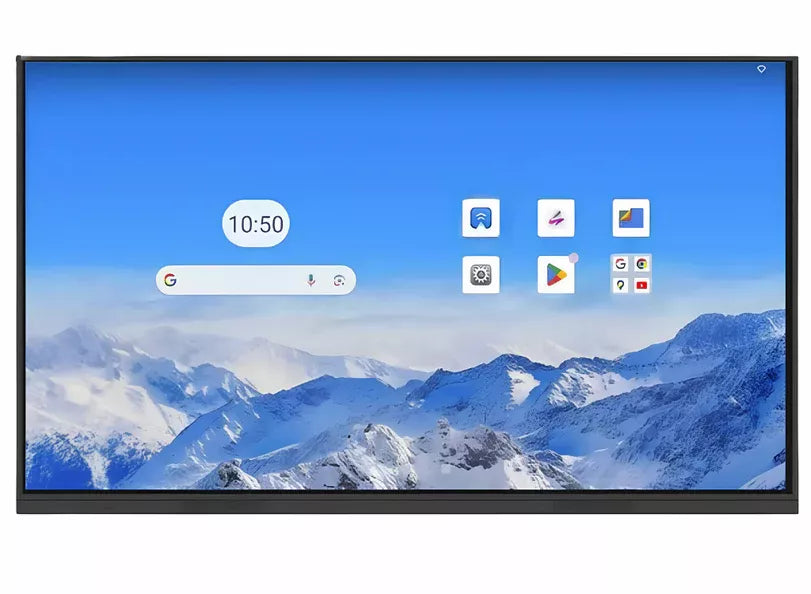

• Hikvision DS-D5A86RB/A2 86" Interactive Displays
1 1

Hikvision

Hikvision PROJECT DS-D5A86RB/A2 86" Interactive Displays

Hikvision PROJECT DS-D5A86RB/A2 86" Interactive Displays

£1,235.00 GBP
£1,994.59 GBP £1,235.00 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • UHD 4K display with resolution of 3840 × 2160.
  • Android 14.0 System, EDLA Certified
  • Anti-glare and anti-blocking design to ensure smooth interaction.
  • Dual systems of Android and Windows (optional) saving cost and easy to use, video conference software are recommended to run under Windows system.
  • Quick response, at most 40-point touch controls and smooth writing experience.
  • Compatible with OPS/OPS-C devices, realizing smooth switch between built-in systems.
    • Description
    • Specifications
    • Downloads

    • Hikvision DS-D5A86RB/A2 86" 4K Ultra HD Android 14.0 - Google EDLA Certified Interactive Display

      UHD 4K display with resolution of 3840 × 2160.

      Android 14.0 System, EDLA Certified

      Anti-glare and anti-blocking design to ensure smooth interaction.

      Dual systems of Android and Windows (optional) saving cost and easy to use, video conference software are recommended to run under Windows system.

      Quick response, at most 40-point touch controls and smooth writing experience.

      Compatible with OPS/OPS-C devices, realizing smooth switch between built-in systems.

    • Feature Description
      Product Model DS-D5A86RB/A2
      Screen Size 86 inch
      Backlight DLED
      Resolution 3840 × 2160 @60 Hz
      Brightness (Max) 400 cd/m²
      Brightness (Typ.) 350 cd/m²
      Color Depth 10 bit
      Display Color 1.07B (8bit+FRC)
      Response Time 8 ms
      Panel Type IPS
      Contrast Ratio 1200:1 (Static)
      Color Gamut 72% NTSC (CIE1931) (Typ.)
      Refresh Rate 60 Hz
      Viewing Angle 178°(H)/178°(V)
      Aspect Ratio 16:9
      Touch Type Infrared Touch Screen
      Touch Points 40-point multi-touch
      Touch Response Time ＜8 ms
      Minimum Touch Object Single ≥1.6mm; Multi ≥2mm
      Touch Precision ± 1 mm (≥ 90% touching area)
      Touch Resolution 32767 × 32767
      Operating System Android 14.0
      Memory 8GB (4GB optional)
      Built-in Storage 128GB (64GB/32GB optional)
      CPU Cortex-A73 × 4 (1.5GHz)
      GPU Mali-G52 MC1
      Loudspeaker 2 × 15 W
      Bluetooth Bluetooth 5.1
      HDMI IN (Rear) 2 × HDMI 2.1 (CEC, ARC)
      HDMI IN (Front) 1 × HDMI 2.1 (CEC)
      AUDIO IN 1 × AUDIO IN
      HDMI OUT 1 × HDMI 2.1
      AUDIO OUT 1 × AUDIO OUT
      TOUCH-USB 2 × USB 2.0 (Front & Rear)
      RS232 IN 1 × RS232 (Rear)
      LAN 2 × LAN (100 Mbps)
      WiFi WiFi 6 (2.4G/5G)
      USB 2.0 2 × USB 2.0
      USB 3.0 1 × USB 3.0
      Type-C 2 × Type-C (1 charging, 1 USB 2.0)
      Power Supply AC 100V ~ 240V, 50/60Hz
      Standby Consumption ≤ 0.5W
      Max. Power Consumption 200W
      Product Dimensions 1483.9 × 891.2 × 98.6 mm
      Package Dimensions 1640 × 185 × 1010 mm
      VESA 600 × 400 mm (4 × M8)
      Net Weight 34.35 kg
      Gross Weight 42.7 kg
      Working Temperature 0°C to 40°C
      Working Humidity 10% ~ 90% RH
