| Display |
| Panel type |
IPS |
| Display number of colours |
1.07 billion colours |
| Touchscreen |
No |
| Active display area (W x H) |
1209.6 x 680.4 mm |
| Display technology |
LCD |
| Display diagonal |
138.7 cm (54.6") |
| Display resolution |
3840 x 2160 pixels |
| Display brightness |
500 cd/m² |
| HD type |
4K Ultra HD |
| Response time |
8 ms |
| Contrast ratio (typical) |
1200:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Pixel pitch |
0.3155 x 0.3155 mm |
| Display diagonal (metric) |
139 cm |
| Native aspect ratio |
16:9 |
| Horizontal scan range |
30 - 83 kHz |
| Native refresh rate |
60 Hz |
| Haze rate |
1% |

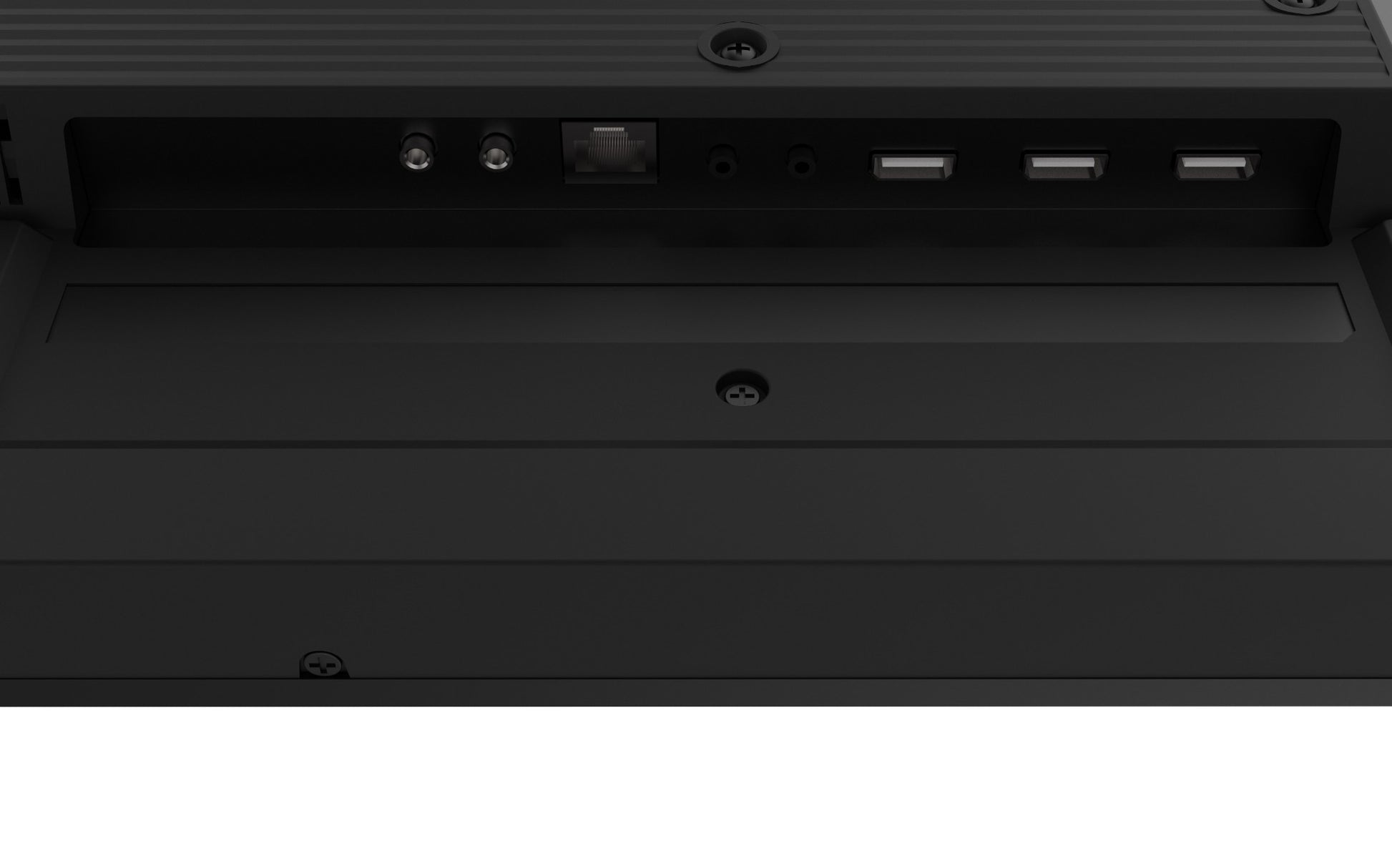

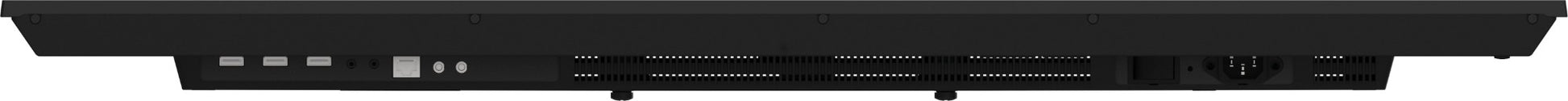

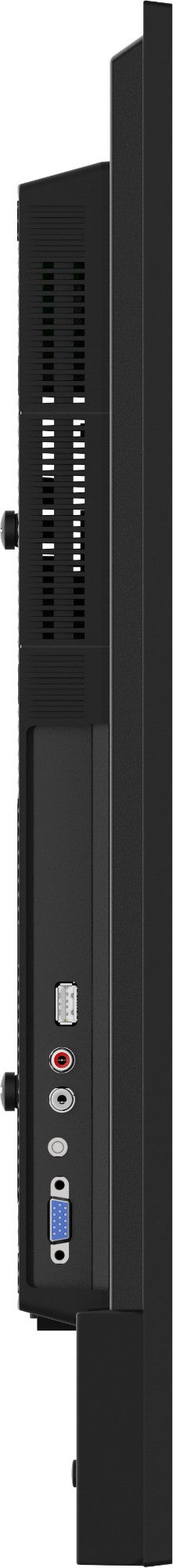

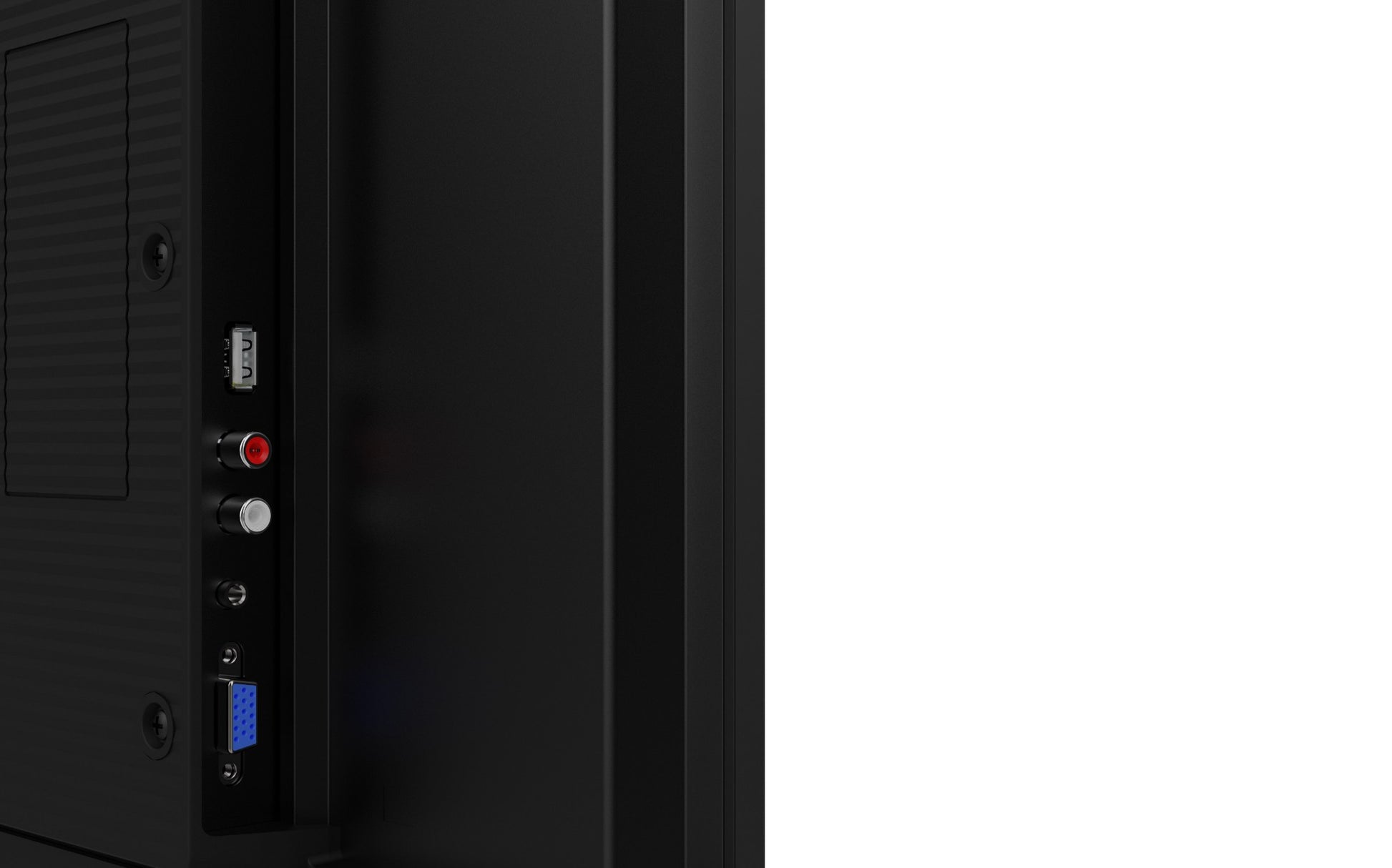

| Ports & interfaces |
| Remote (IR) output |
1 |
| Remote (IR) input |
1 |
| RS-232C |
Yes |
| Wi-Fi |
No |
| PC Audio in |
Yes |
| Ethernet LAN |
Yes |
| HDMI ports quantity |
3 |
| DVI port |
Yes |
| VGA (D-Sub) input ports |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB ports quantity |
1 |
| Audio |
| Number of built-in speakers |
2 |
| RMS rated power |
20 W |
| Built-in speaker(s) |
Yes |
| Design |
| Product design |
Kiosk design |
| Placement supported |
Indoor |

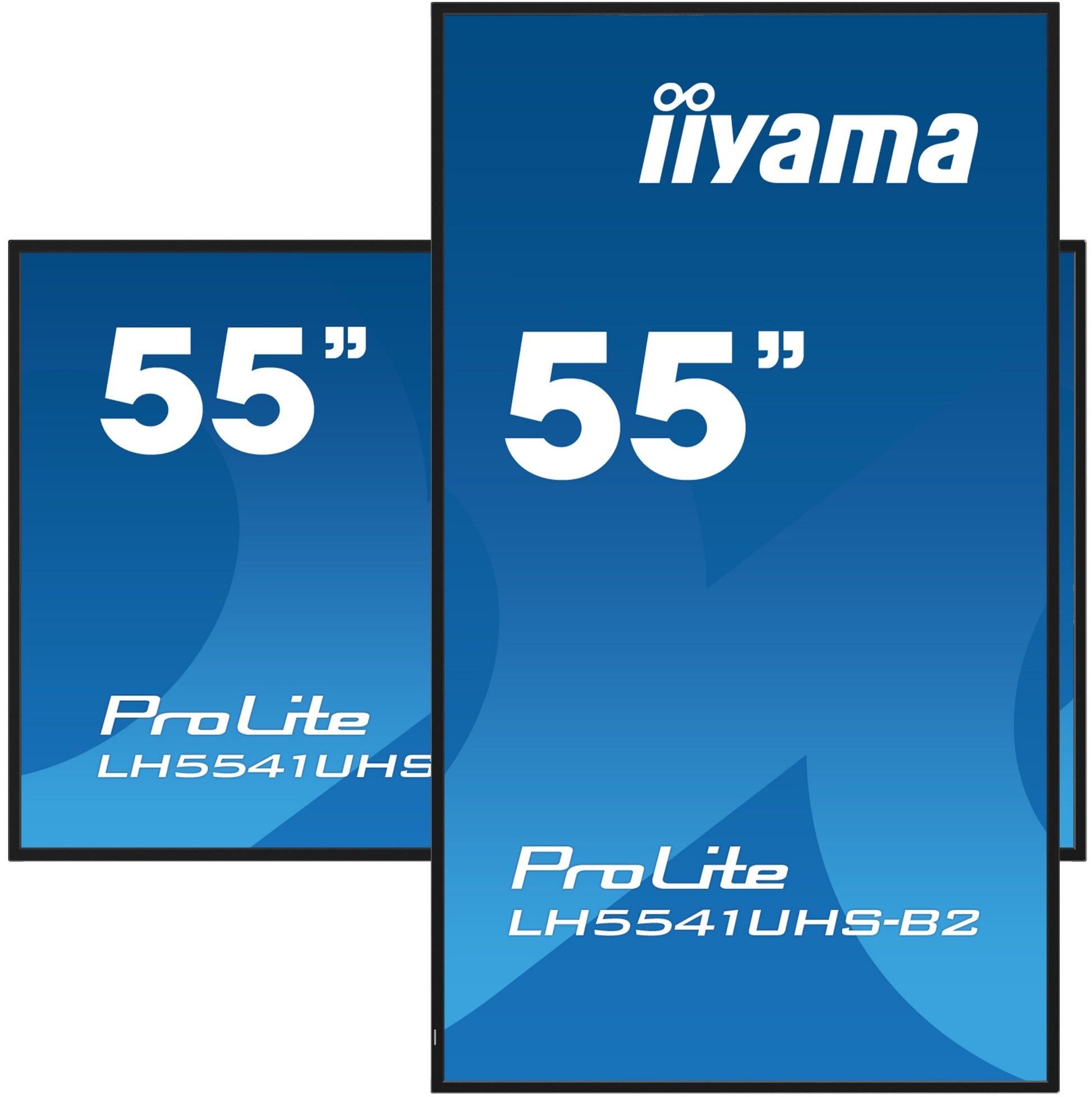

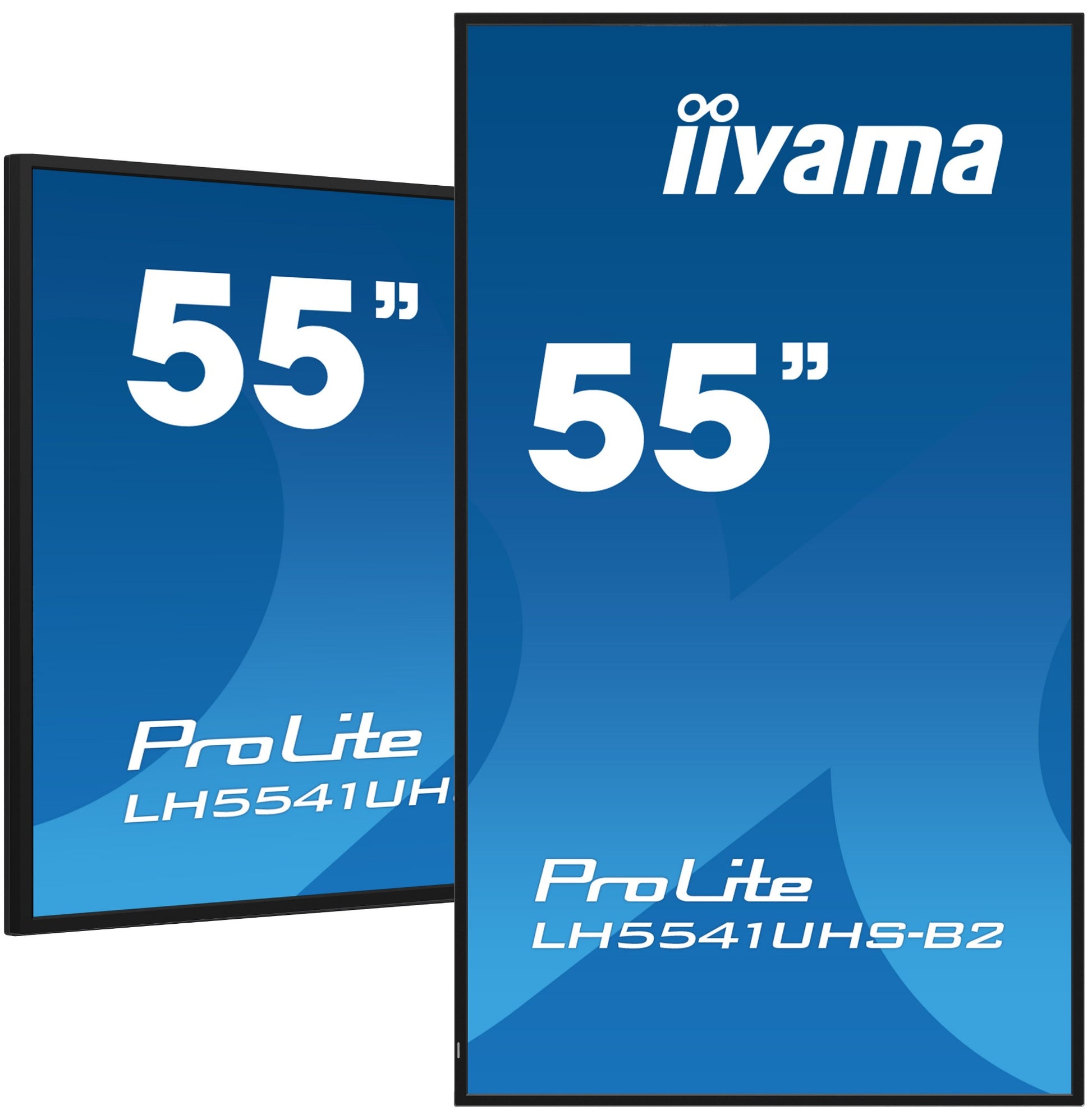

| Orientation |
Horizontal/Vertical |
| Housing material |
Metal |
| Bezel width (top) |
1.4 cm |
| Bezel width (side) |
1.4 cm |
| Bezel width (bottom) |
1.55 cm |
| Product colour |
Black |

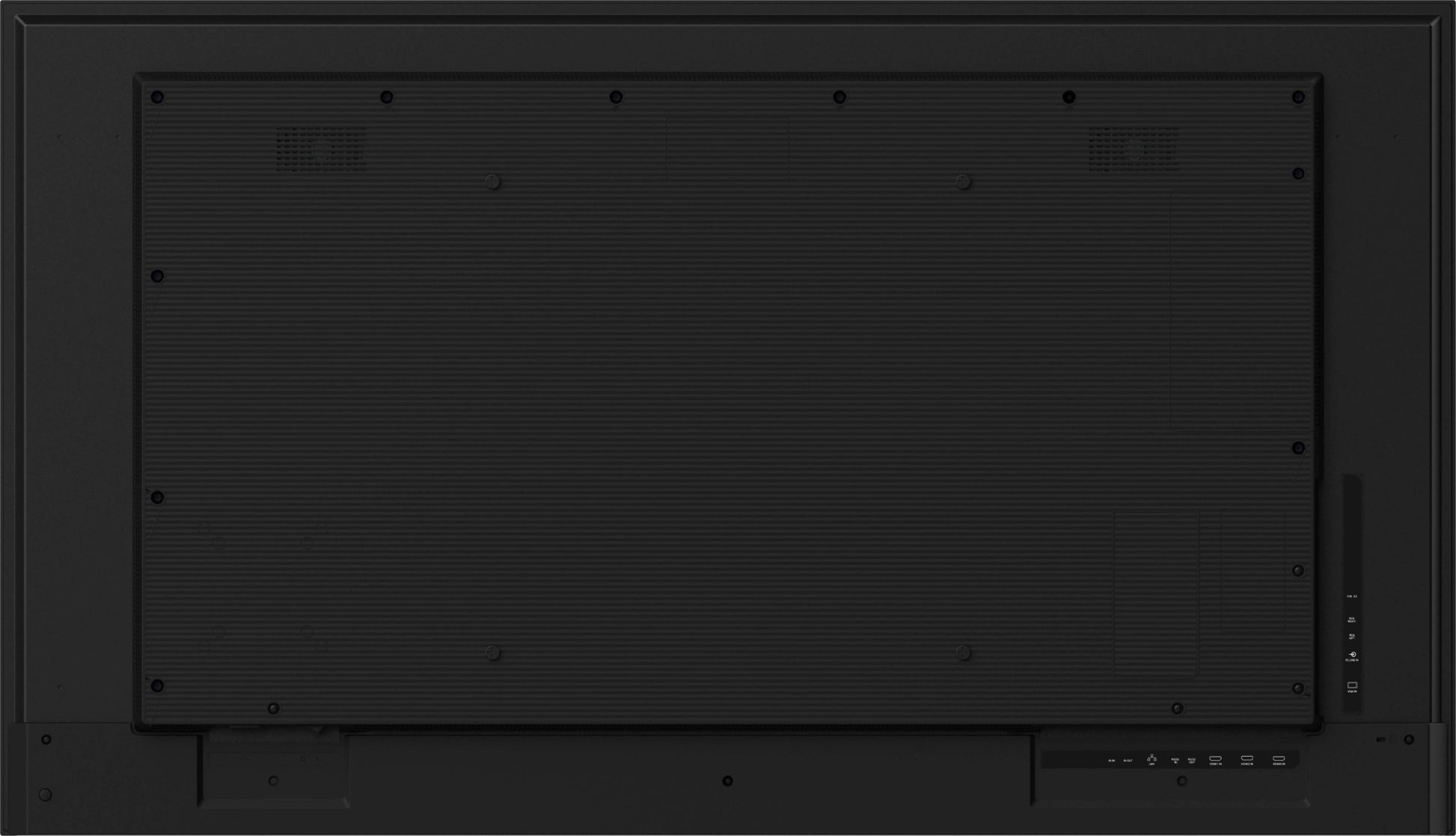

| Panel mounting interface |
400 x 400 mm |
| Certification |
CB, CE, TÜV-Bauart, EAC, ErP, WEEE, REACH |
| VESA mounting |
Yes |
| Bezel colour |
Black |
| Performance |
| Purpose |
Universal |
| Operating hours (hours/days) |
24/7 |
| Mean time between failures (MTBF) |
50000 h |
| On Screen Display (OSD) languages |
German, English, Spanish, French, Italian, Japanese, Dutch, Russian |
| On Screen Display (OSD) |
Yes |
| Number of OSD languages |
11 |
| HDCP |
Yes |
| HDCP version |
2.2 |
| Wi-Fi |
No |
| Power |
| Power consumption (off) |
0.3 W |
| Power consumption (typical) |
139 W |
| Power consumption (standby) |
0.4 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Energy efficiency scale |
A to G |
| Energy efficiency class (SDR) |
G |
| Energy efficiency class (HDR) |
Not available |
| Energy consumption (SDR) per 1000 hours |
139 kWh |
| Computer system |
| Computer system |
Yes |
| Processor model |
V810 |
| Internal memory |
2 GB |
| Internal storage capacity |
16 GB |
| Built-in processor |
Yes |
| Weight & dimensions |
| Width |
1237.5 mm |
| Depth |
55 mm |
| Height |
710 mm |
| Weight |
14.3 kg |
| Display width |
1237.5 mm |
| Display depth |
55 mm |
| Display height |
710 mm |
| Display weight |
14.3 kg |
| Packaging data |
| Package width |
1386 mm |
| Package depth |
130 mm |
| Package height |
845 mm |
| Quick start guide |
Yes |
| Batteries included |
Yes |
| Remote control included |
Yes |

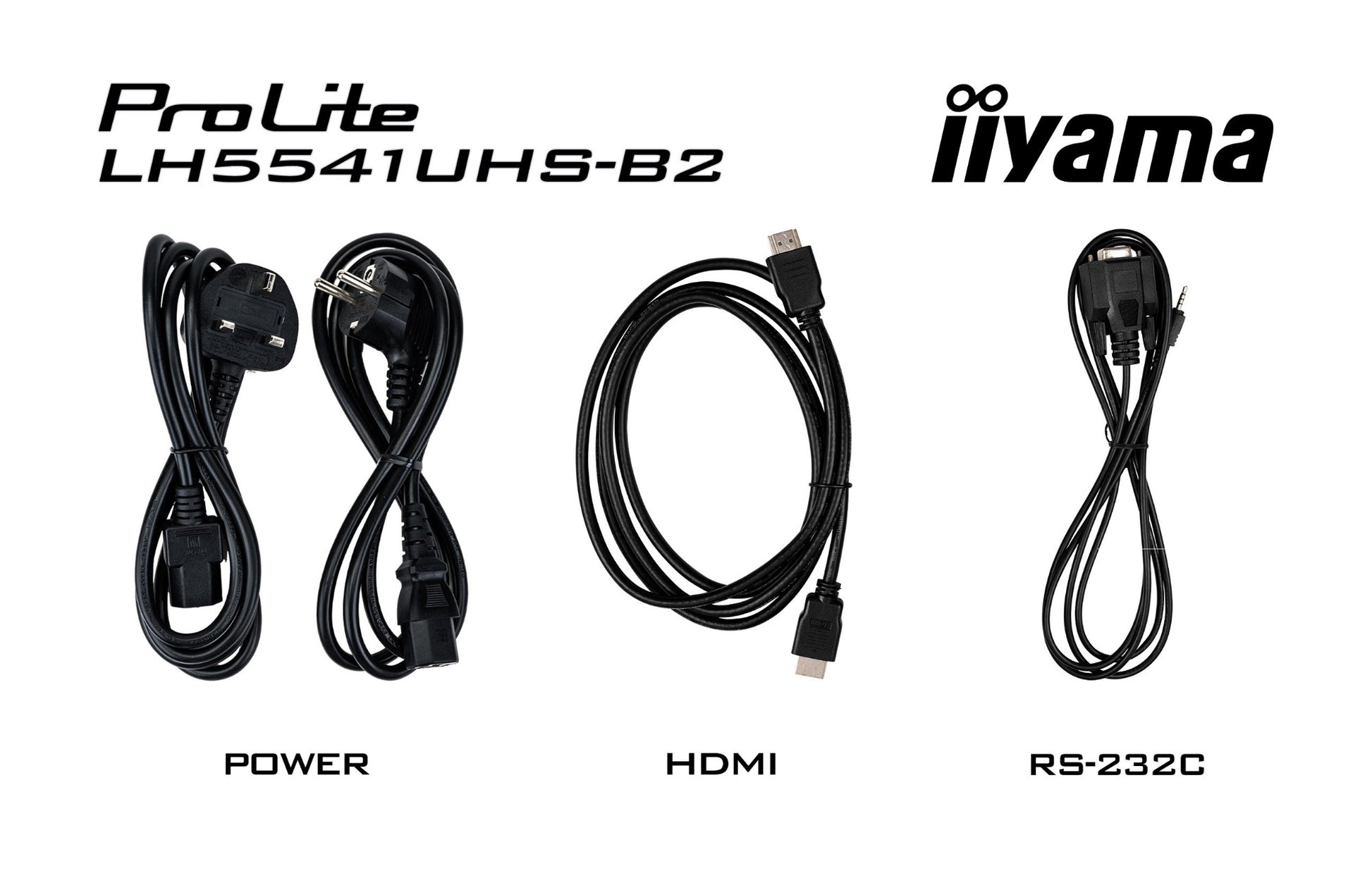

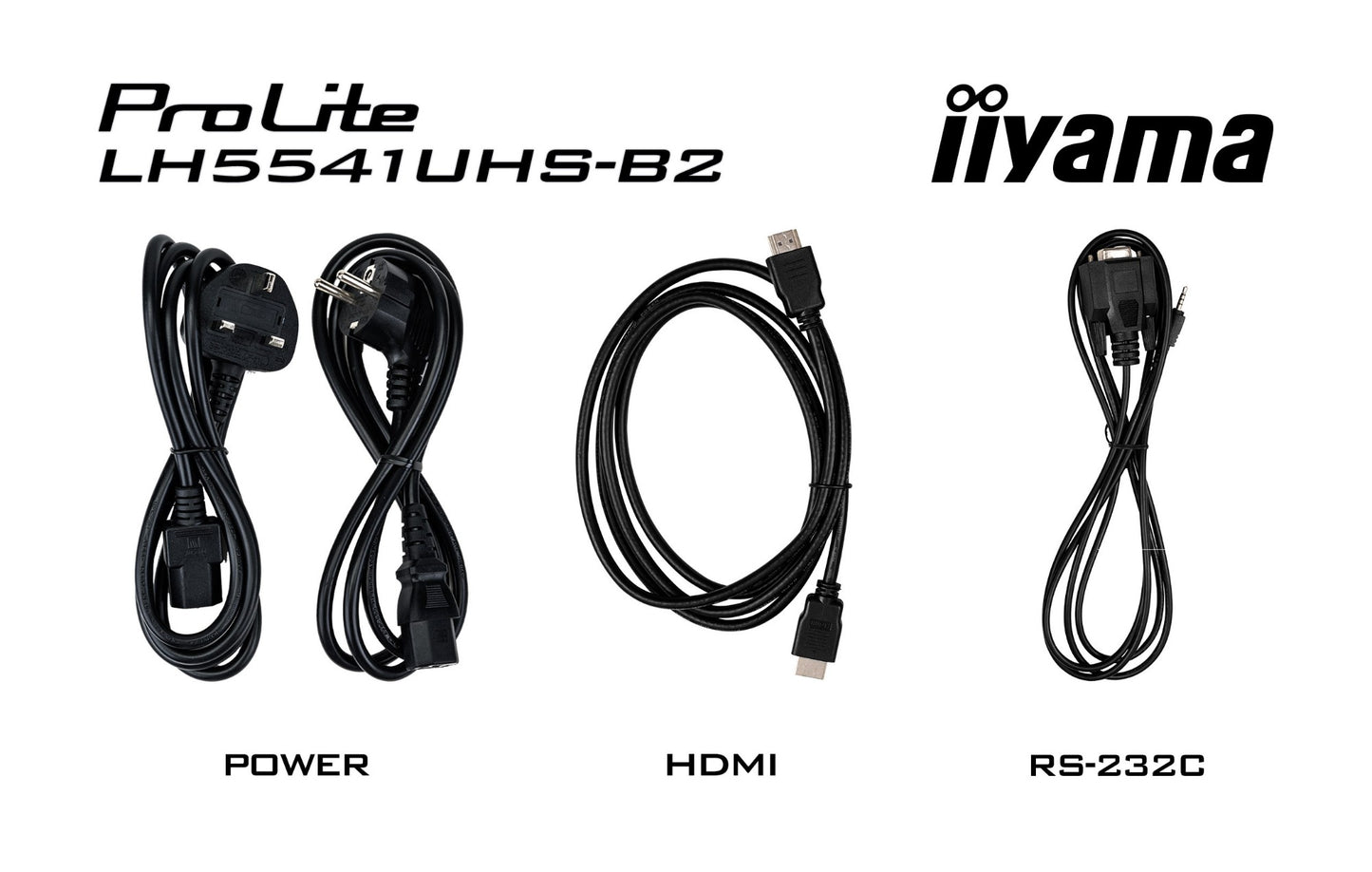

| Cables included |
AC, HDMI, RS-232 |
| Packaging content |
| Quick start guide |
Yes |
| Batteries included |
Yes |
| Remote control included |
Yes |
| Cables included |
AC, HDMI, RS-232 |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Certificates |
| Certification |
CB, CE, TÜV-Bauart, EAC, ErP, WEEE, REACH |
| Technical details |
| VESA mounting |
Yes |
| Power supply type |
Internal |
| Panel type |
IPS |
| Cable management |
Yes |
| Audio in (mini jack) |
Yes |
| Playback media |
Yes |
| User controls |
picture (picture format, colour temp., noise reduction, dynamic contrast, gamma, brightness, black level, contrast, colour, hue, sharpness, RGB range, reset), sound (treble, bass, balance, speaker, audio output, reset), general settings (language, clock, schedule, HDMI CEC link, HDMI modes, communication setting, screen (auto adjust, clock, phase, H. position, V. position, reset), auto power off, network standby, power management, auto signal detection, auto play, local KB lock, RC lock, monitor ID, LED, pixel shift, information, factory reset) |
| Sustainability certificates |
ErP |
| Compliance certificates |
CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE |
| Network |
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Thin Client |
| Processor model |
V810 |
| Internal memory |
2 GB |
| Internal storage capacity |
16 GB |
| Logistics data |
| Harmonized System (HS) code |
85285210 |
| Features |
| Harmonized System (HS) code |
85285210 |
| Other features |
| Power supply type |
Internal |
| Panel type |
IPS |
| Cable management |
Yes |
| Housing material |
Metal |
| Wi-Fi |
No |
| Mean time between failures (MTBF) |
50000 h |
| Display technology |
LCD |
| Bezel width (top) |
1.4 cm |
| Bezel width (side) |
1.4 cm |
| Bezel width (bottom) |
1.55 cm |
| Quick start guide |
Yes |
| Energy efficiency scale |
A to G |
