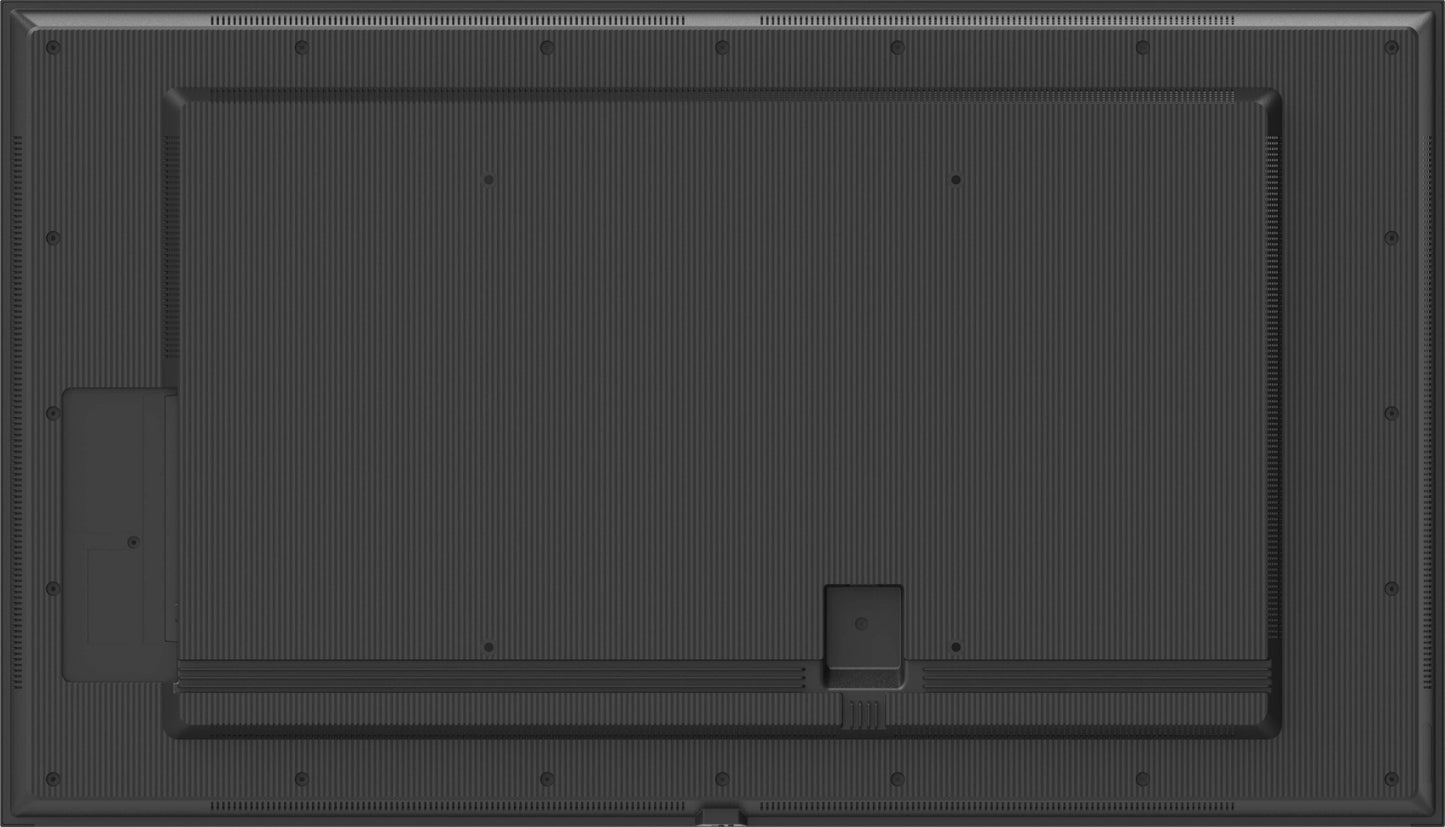

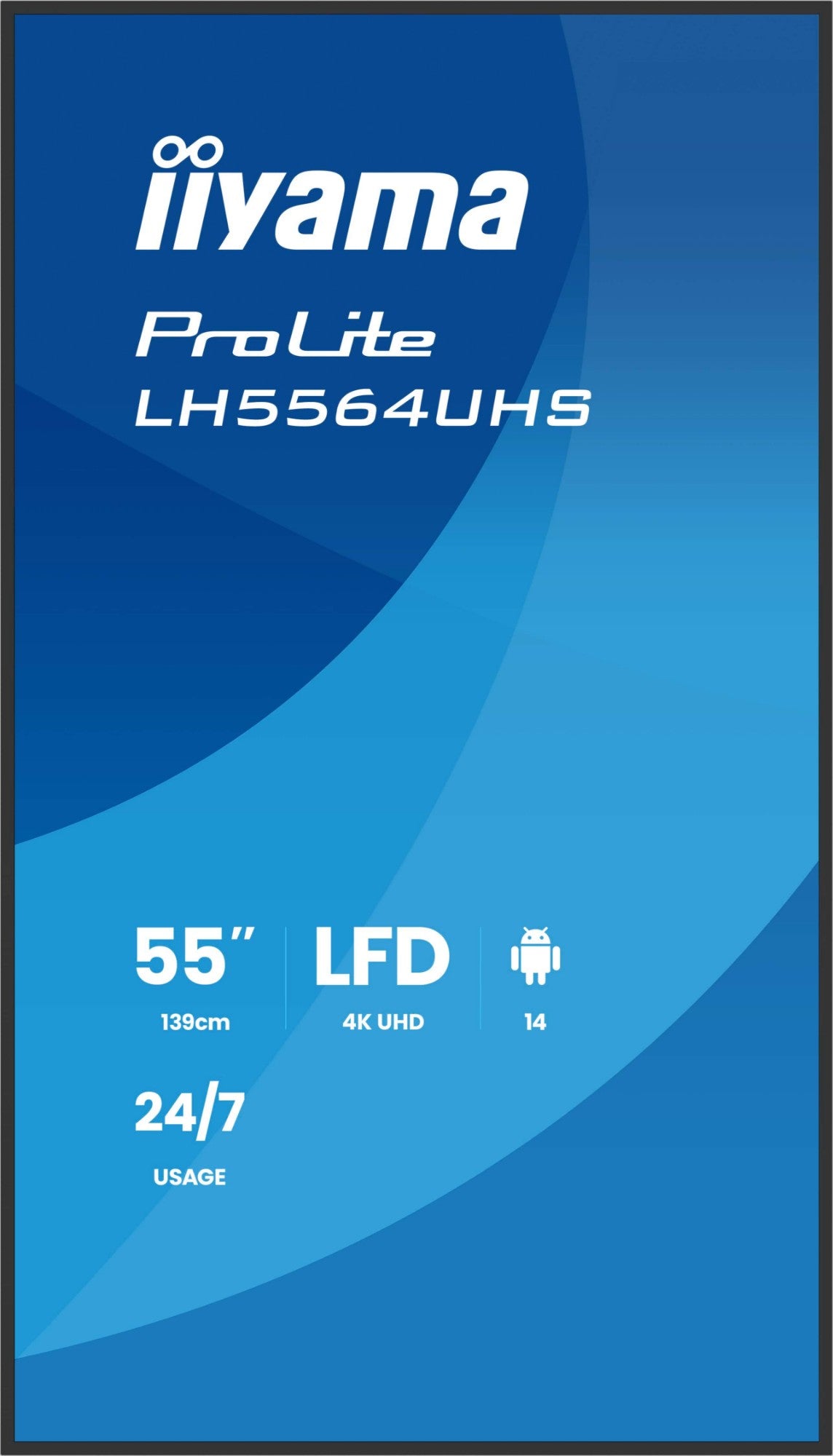

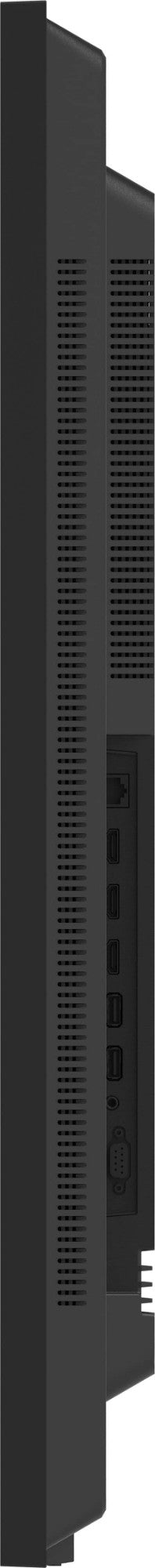

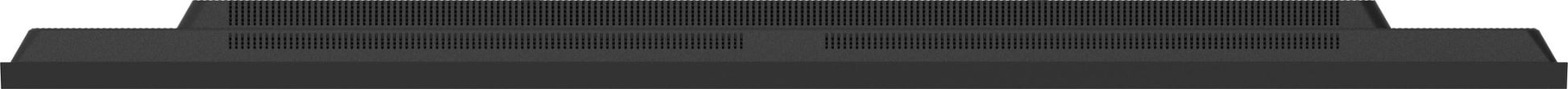

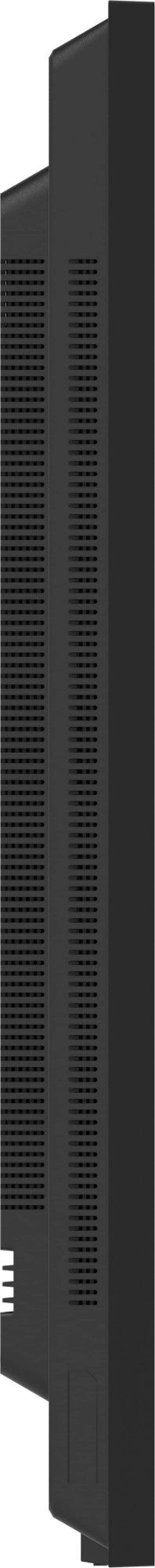

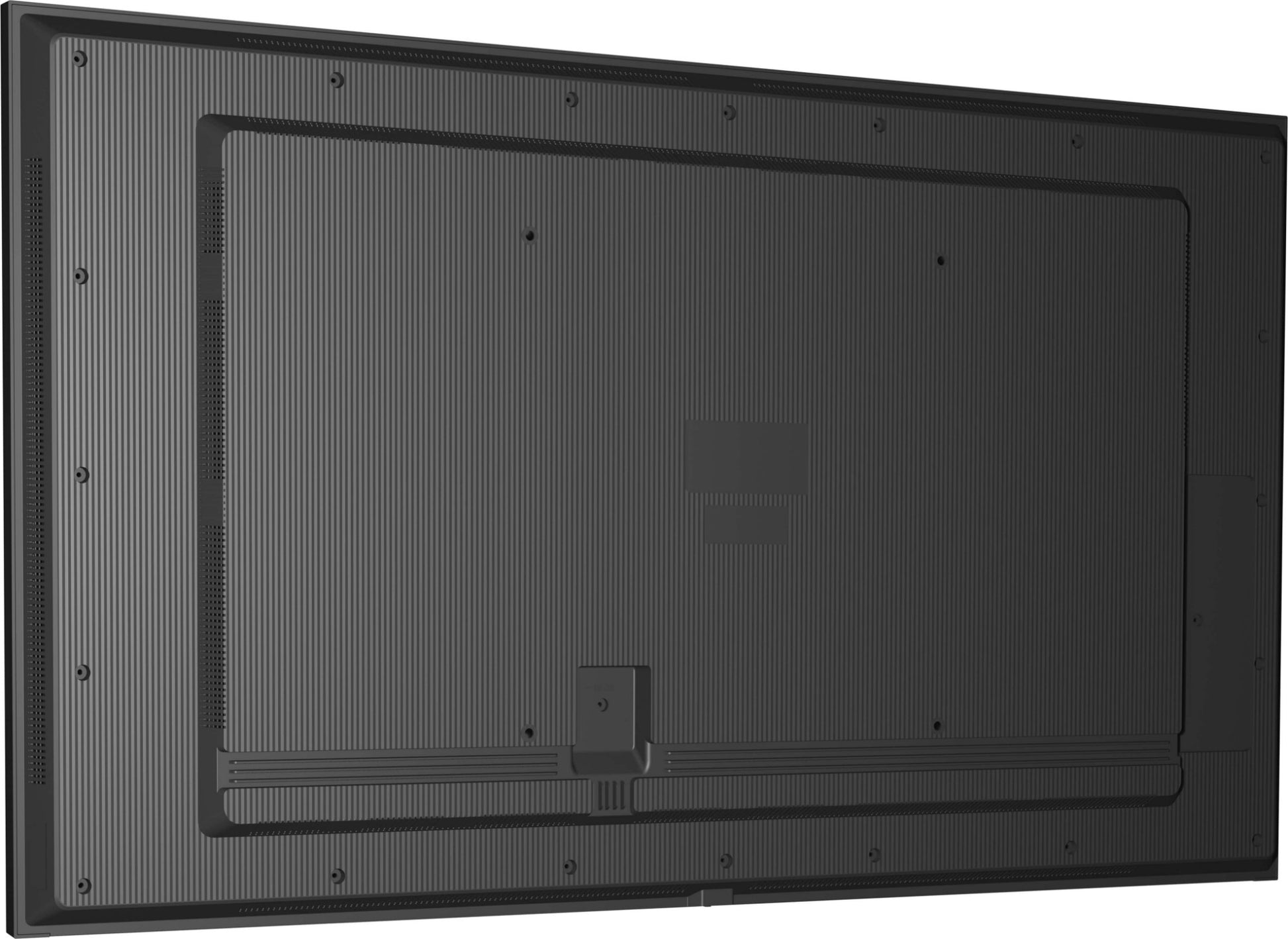

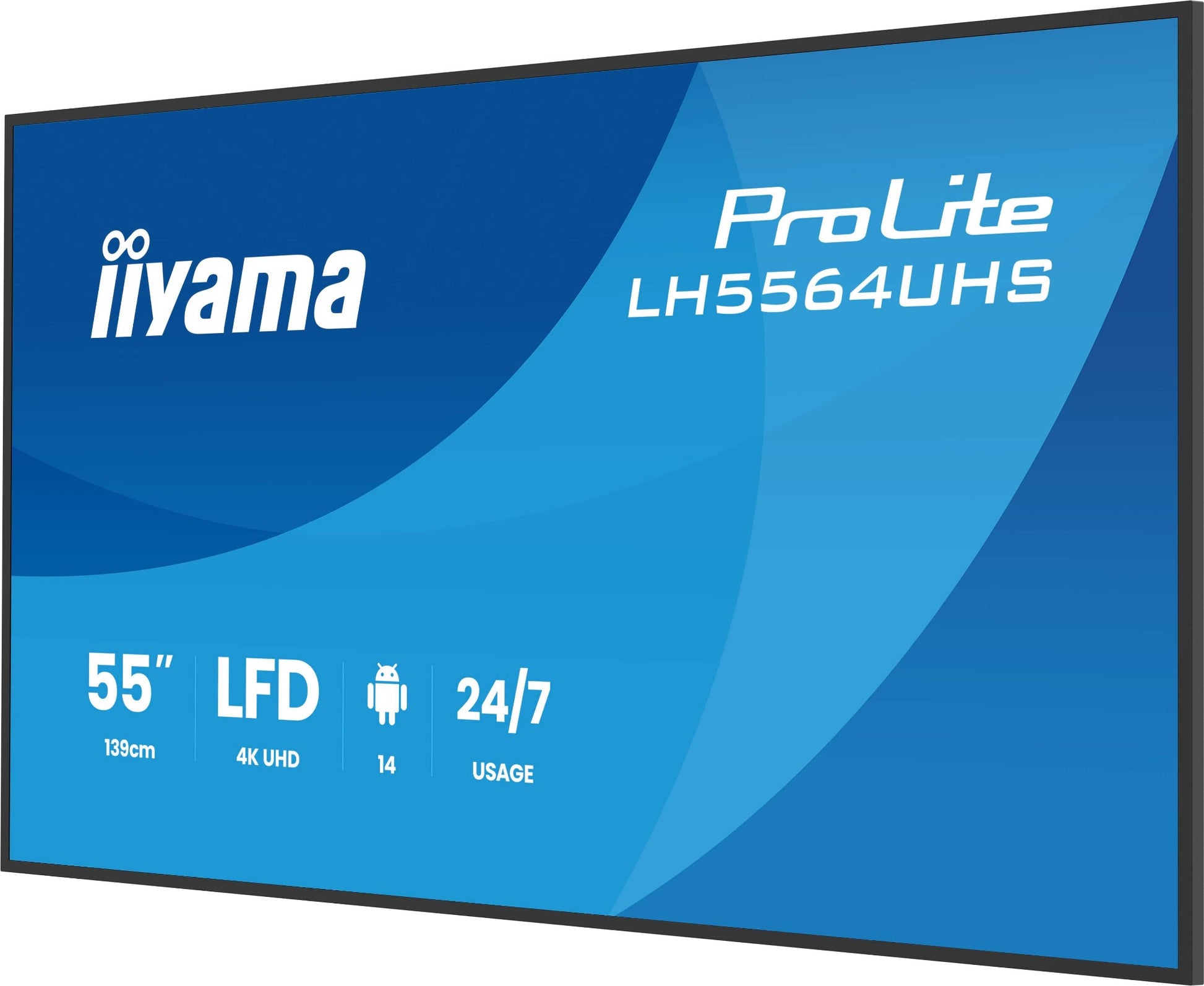

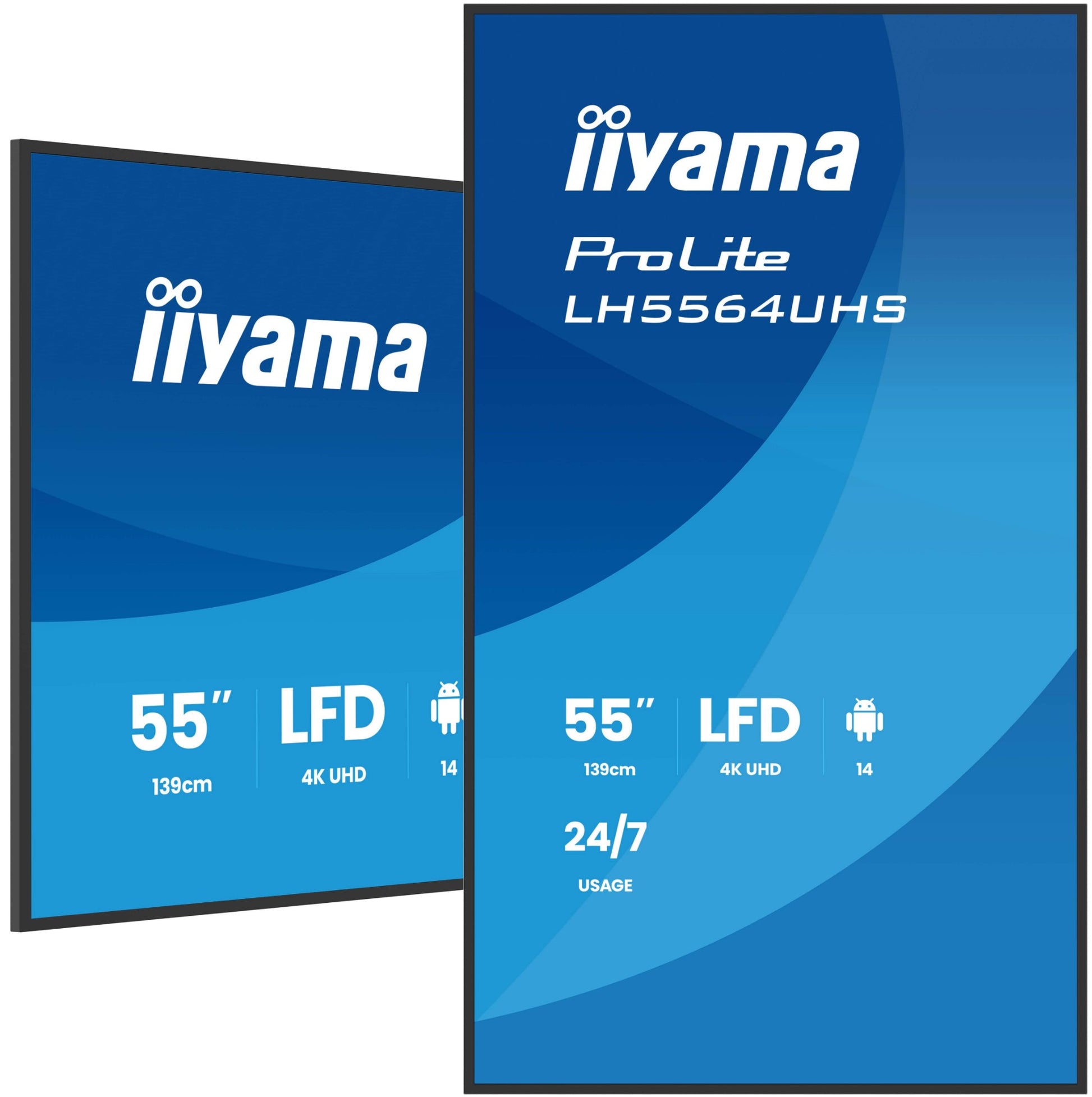

iiyama LH5564UHS-B1AG Signage Display Digital signage flat panel 139.7 cm (55") Wi-Fi 500 cd/m² 4K Ultra HD Black Built-in processor Android 24/7
iiyama LH5564UHS-B1AG Signage Display Digital signage flat panel 139.7 cm (55") Wi-Fi 500 cd/m² 4K Ultra HD Black Built-in processor Android 24/7
Regular price
£748.80 GBP
Regular price
Sale price
£748.80 GBP
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability

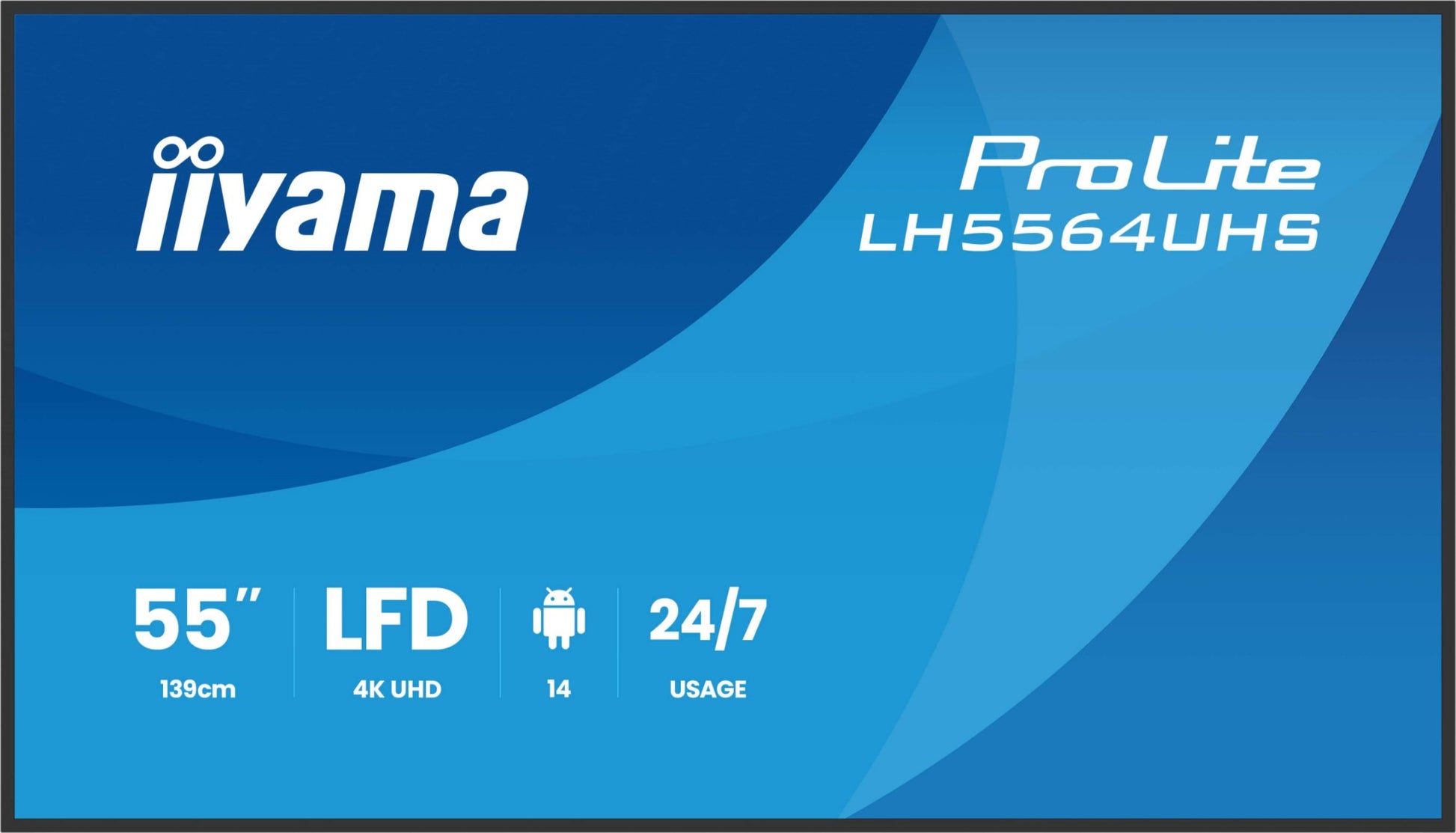

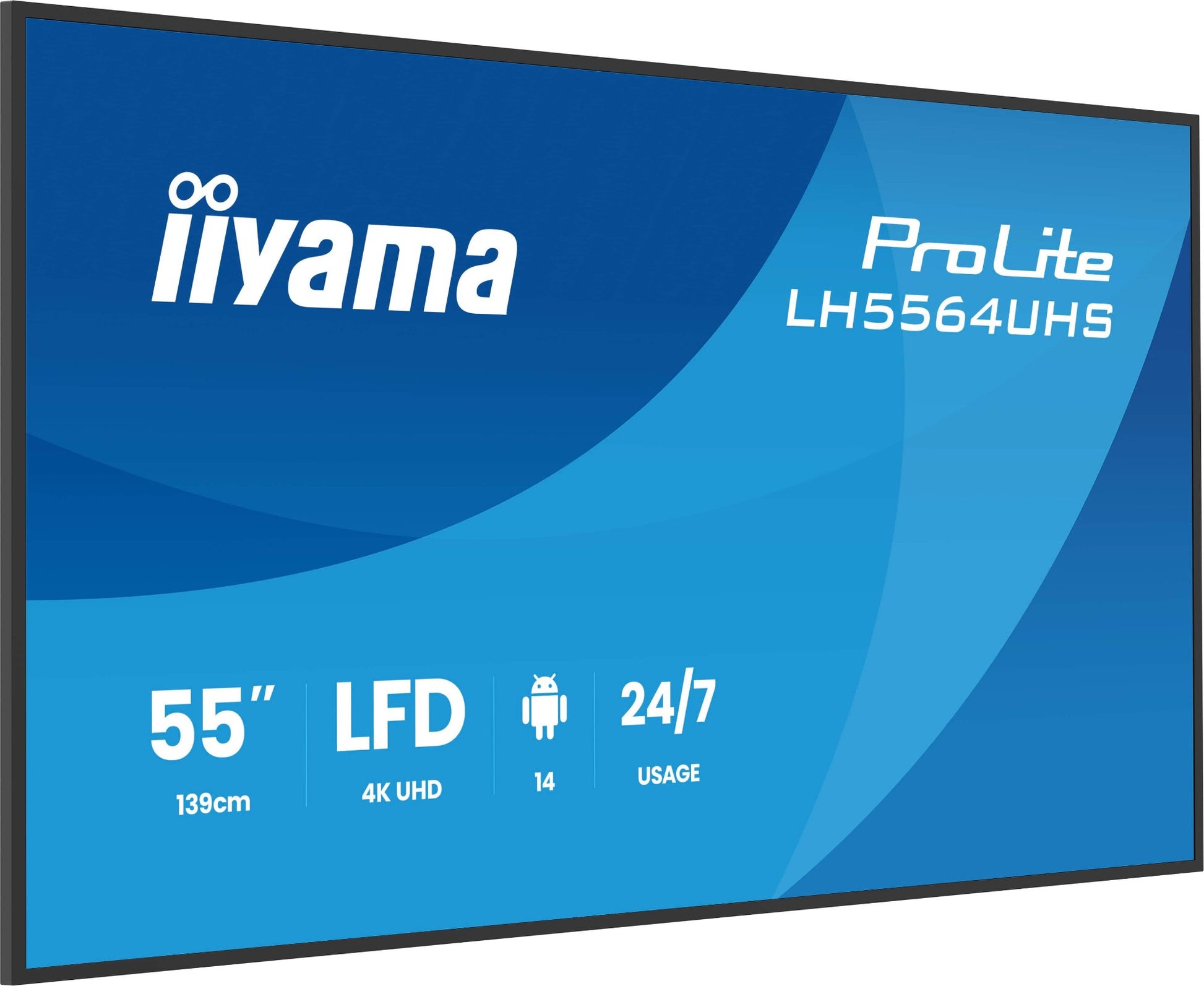

The ProLite LH5564UHS-B1AG is a 55" 4K UHD digital signage powerhouse designed to elevate your business's visual communication. With Android 14 OS, iiSignage² (CMS), iiControl (DMS) and iiShare (Wireless Presentation), managing content is effortless. It's WiFi enabled for remote content delivery and offers reliable 24/7 operation. Perfect for retail, corporate, hospitality, or restaurant settings, this display ensures a captivating audience experience with its versatile design and high brightness.
Specifications
| Display | |
|---|---|
| Panel type | VA |
| Display number of colours | 1.07 billion colours |
| Touchscreen | No |
| Active display area (W x H) | 1209.6 x 680.4 mm |
| Display diagonal | 139.7 cm (55") |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/m² |
| HD type | 4K Ultra HD |
| Response time | 6.5 ms |
| Contrast ratio (typical) | 5000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.315 x 0.315 mm |
| Display diagonal (metric) | 138.7 cm |
| Native aspect ratio | 16:9 |
| Horizontal scan range | 57 - 62 kHz |
| Anti-glare screen | Yes |
| Number of displays | 1 |
| Native refresh rate | 60 Hz |
| Haze rate | 25% |

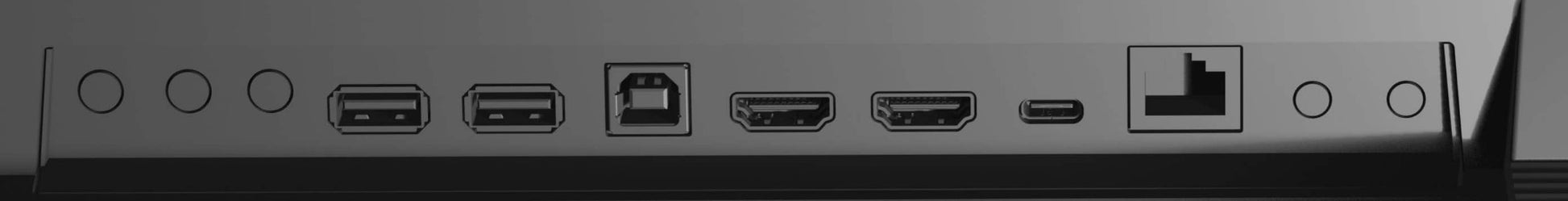

| Ports & interfaces | |
| Remote (IR) output | 1 |
| Remote (IR) input | 1 |
| USB port | Yes |
| HDMI version | 2.0 |
| RS-232C | Yes |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| HDMI ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB version | 2.0 |
| USB ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 15 W |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Audio | |
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
| Built-in speaker(s) | Yes |
| Design | |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |

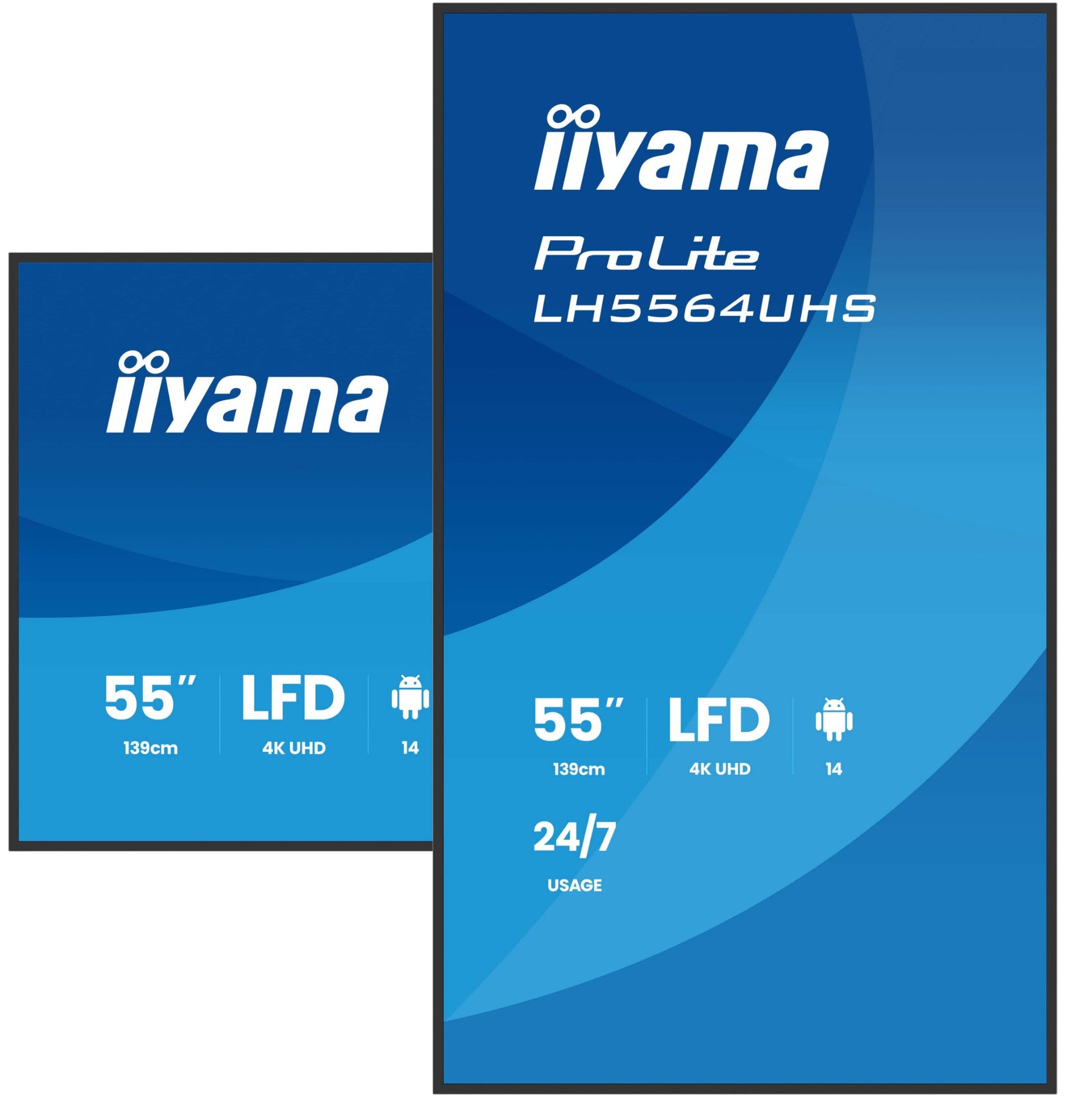

| Orientation | Horizontal/Vertical |
| Bezel width (top) | 1.28 cm |
| Bezel width (side) | 1.28 cm |
| Bezel width (bottom) | 1.28 cm |
| Product colour | Black |
| Panel mounting interface | 400 x 400 mm |
| VESA mounting | Yes |
| Anti-glare screen | Yes |
| Bezel colour | Black |
| Performance | |
| Purpose | Universal |
| Operating hours (hours/days) | 24/7 |
| Mean time between failures (MTBF) | 50000 h |
| On Screen Display (OSD) languages | Traditional Chinese, Czech, Danish, German, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Dutch, Polish, Russian, Swedish |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 15 |
| HDCP | Yes |
| HDCP version | 1.4/2.0 |
| Wi-Fi | Yes |
| Power | |
| Power consumption (off) | 0.3 W |
| Power consumption (typical) | 135 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 135 kWh |
| Computer system | |
| Operating system installed | Android |
| Internal memory | 4 GB |
| Internal storage capacity | 32 GB |
| Built-in processor | Yes |
| On-board graphics card model | ARM Mali-G52 |
| Processor architecture | ARM Cortex-A73 |
| Operating system version | 14 |
| Weight & dimensions | |
| Width | 1238.4 mm |
| Depth | 70 mm |
| Height | 709.2 mm |
| Weight | 13 kg |
| Display width | 1238.4 mm |
| Display depth | 70 mm |
| Display height | 709.2 mm |
| Display weight | 13 kg |
| Packaging data | |
| Package width | 1390 mm |
| Package depth | 144 mm |
| Package height | 830 mm |
| Package weight | 18.5 kg |
| Quick start guide | Yes |
| Batteries included | No |
| Remote control included | Yes |
| Mounting kit | Yes |

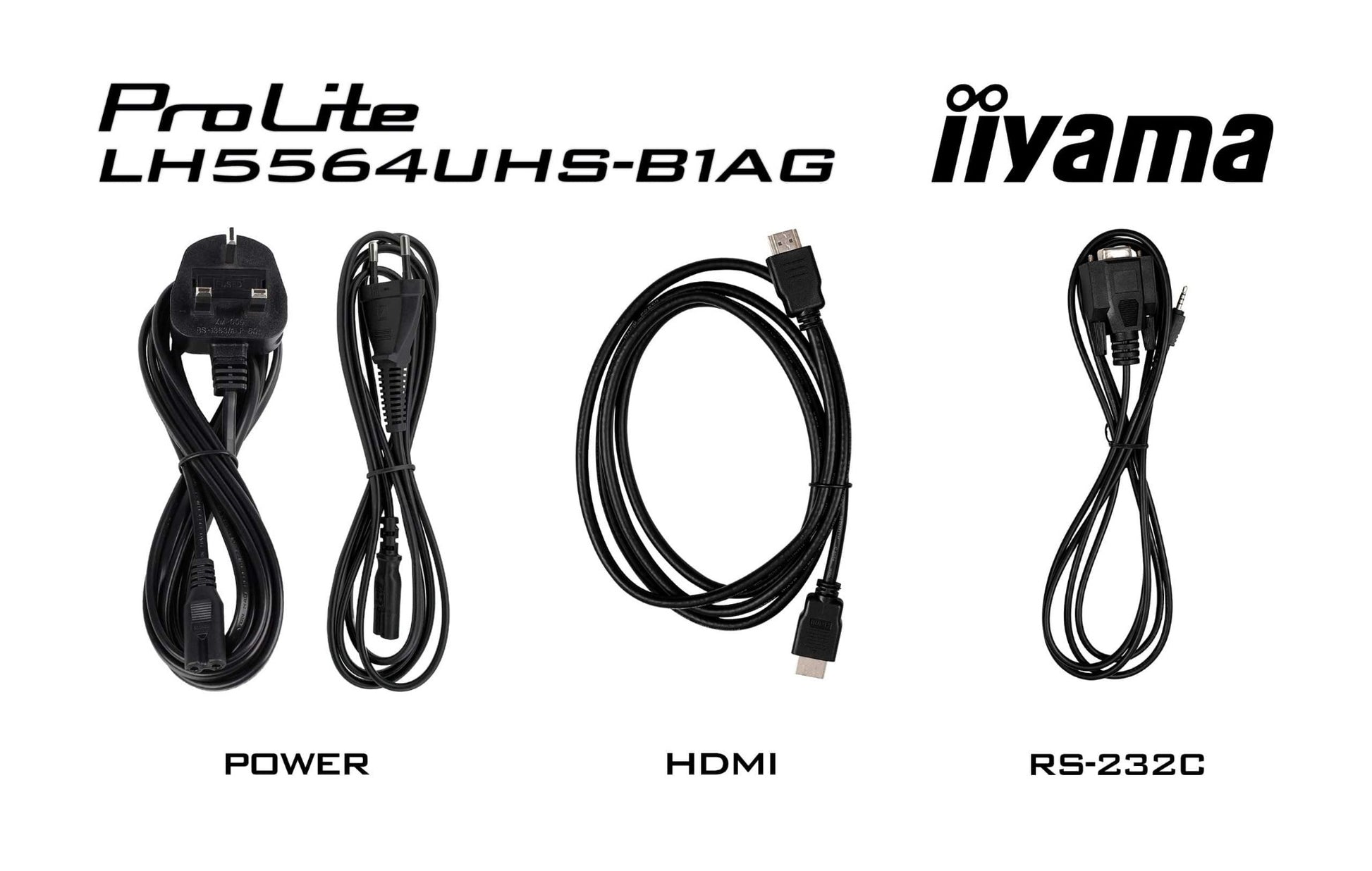

| Cables included | AC, HDMI, RS-232 |
| Packaging content | |
| Quick start guide | Yes |
| Batteries included | No |
| Remote control included | Yes |
| Mounting kit | Yes |
| Cables included | AC, HDMI, RS-232 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Technical details | |
| VESA mounting | Yes |
| Power supply type | Internal |
| Panel type | VA |
| Playback media | Yes |
| User controls | network (status, Wifi, ethernet, hotspot), picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temp., colour control, picture reset), audio (balance, treble, bass, volume, audio out, max. volume, min. volume, mute, audio out sync, speaker setting, audio reset), OSD setting (OSD timeout, OSD H-Position, OSD V-position, OSD transparency, information OSD), general (logo and animation, wallpaper, no signal image, schedule, off timer), screen (zoom mode, custom zoom, system rotation, screen reset), device (power on status, RS232 routing, IR control, power saving, panel saving, monitor info, other), channel (boot on source, rename input channel, auto source switching, signal lost detection, HDMI version), system (language, system update, setting reset, factory reset, Android setting), admin (menu lock, meeting room, HDMI CEC, screen share, Miracast standby, log export) |
| Sustainability certificates | ErP |
| Compliance certificates | CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE |
| Network | |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Thin Client | |
| Operating system installed | Android |
| Internal memory | 4 GB |
| Internal storage capacity | 32 GB |
| Other features | |
| Power supply type | Internal |
| Panel type | VA |
| Wi-Fi | Yes |
| Mean time between failures (MTBF) | 50000 h |
| Bezel width (top) | 1.28 cm |
| Bezel width (side) | 1.28 cm |
| Bezel width (bottom) | 1.28 cm |
| Quick start guide | Yes |
| Energy efficiency scale | A to G |
