| Display |
| Panel type |
IPS |
| Display number of colours |
1.07 billion colours |
| Active display area (W x H) |
1895 x 1066 mm |
| Display diagonal |
2.17 m (85.6") |
| Display resolution |
3840 x 2160 pixels |
| Display brightness |
500 cd/m² |
| HD type |
4K Ultra HD |
| Response time |
8 ms |
| Contrast ratio (typical) |
1200:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Pixel pitch |
0.493 x 0.493 mm |
| Display diagonal (metric) |
217.4 cm |
| Native aspect ratio |
16:9 |
| Horizontal scan range |
28 - 160 kHz |
| Anti-glare screen |
Yes |
| Native refresh rate |
60 Hz |
| Haze rate |
25% |

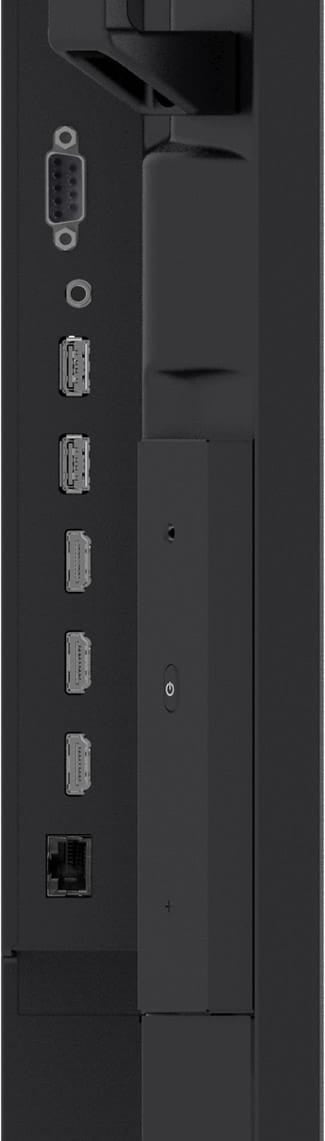

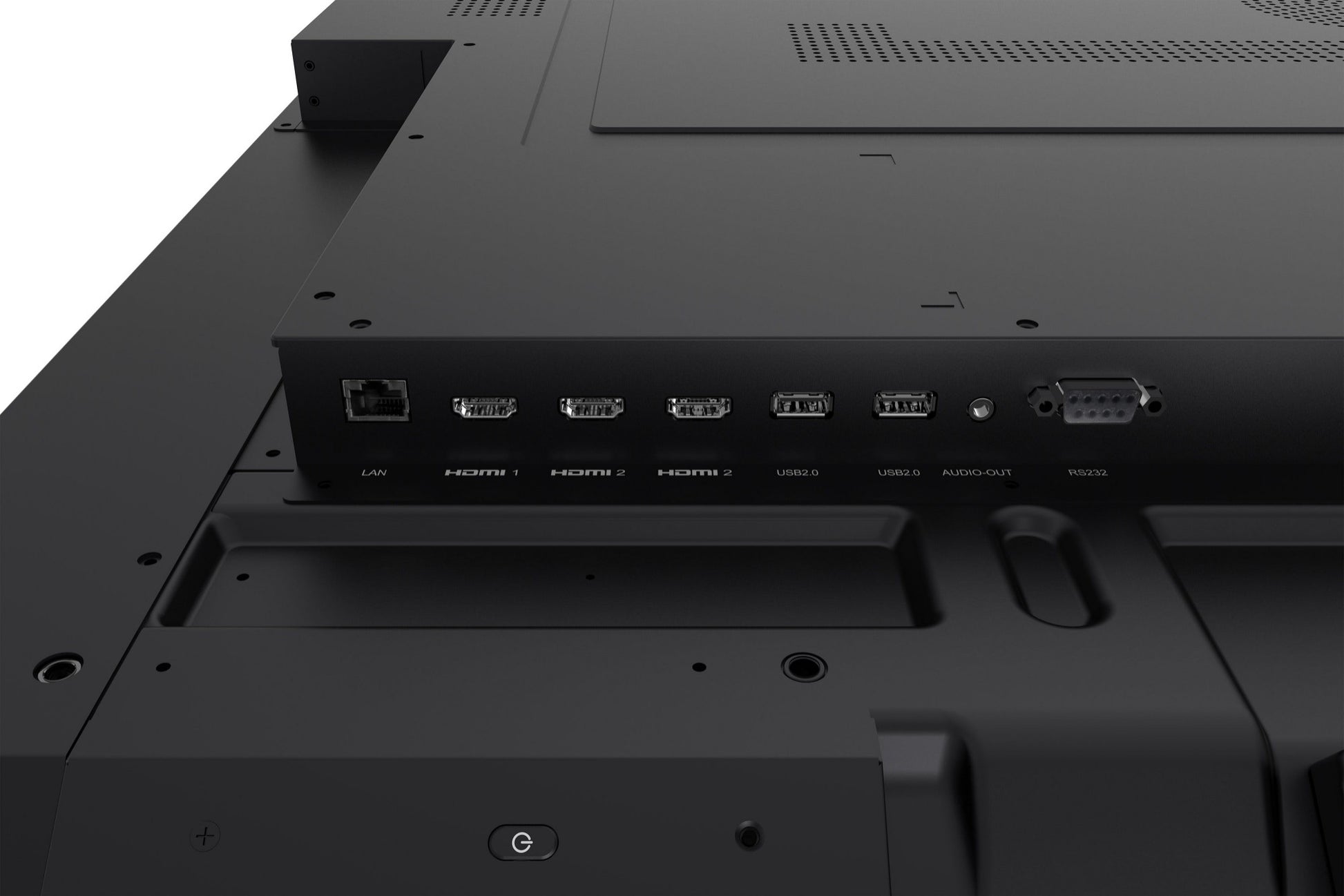

| Ports & interfaces |
| USB connector type |
USB Type-A, USB Type-C |
| Remote (IR) output |
1 |
| Remote (IR) input |
1 |
| DisplayPort version |
1.2 |
| USB port |
Yes |
| HDMI version |
2.0 |
| RS-232C |
Yes |
| Infrared data port |
Yes |
| Wi-Fi standards |
Wi-Fi 5 (802.11ac) |
| Wi-Fi |
Yes |
| Ethernet LAN |
Yes |
| HDMI ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB version |
2.0 |
| USB ports quantity |
2 |
| HDMI input ports quantity |
2 |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery up to |
15 W |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Audio Return Channel (ARC) |
Yes |
| Audio |
| Number of built-in speakers |
2 |
| RMS rated power |
32 W |
| Built-in speaker(s) |
Yes |
| Design |
| Product design |
Digital signage flat panel |
| Placement supported |
Indoor |

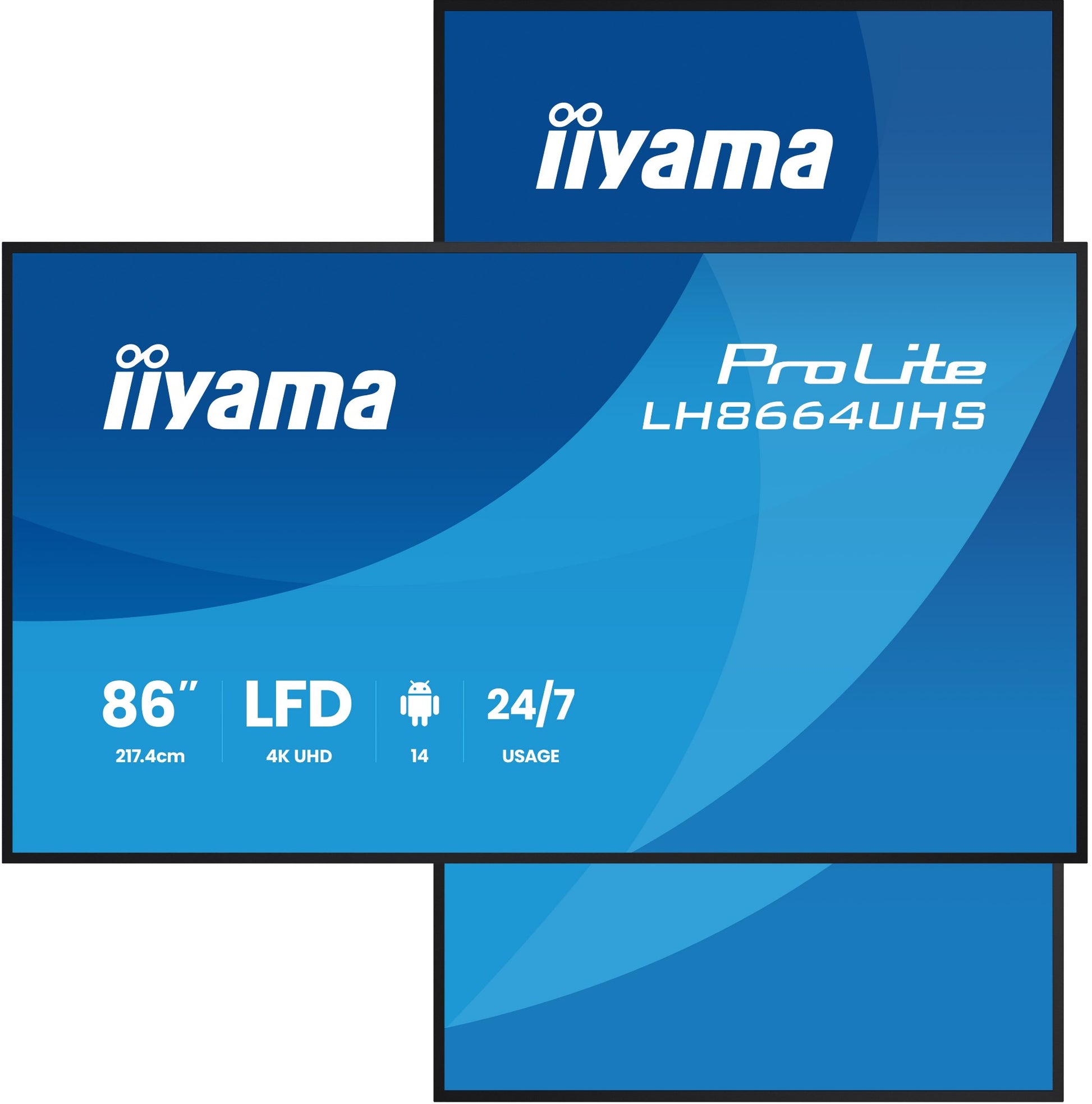

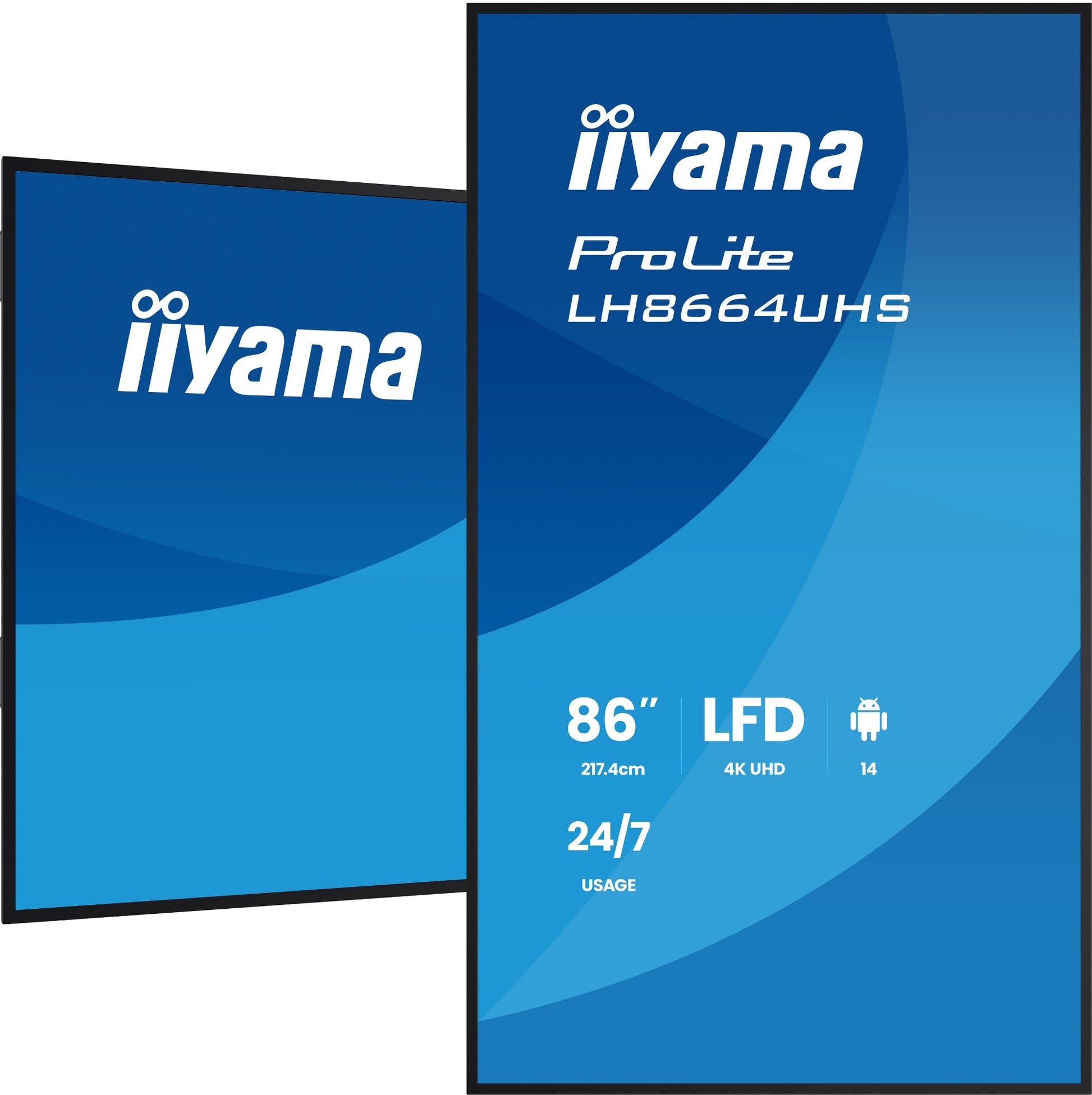

| Orientation |
Horizontal/Vertical |
| Bezel width (top) |
2.2 cm |
| Bezel width (side) |
2.15 cm |
| Bezel width (bottom) |
2.2 cm |
| Product colour |
Black |

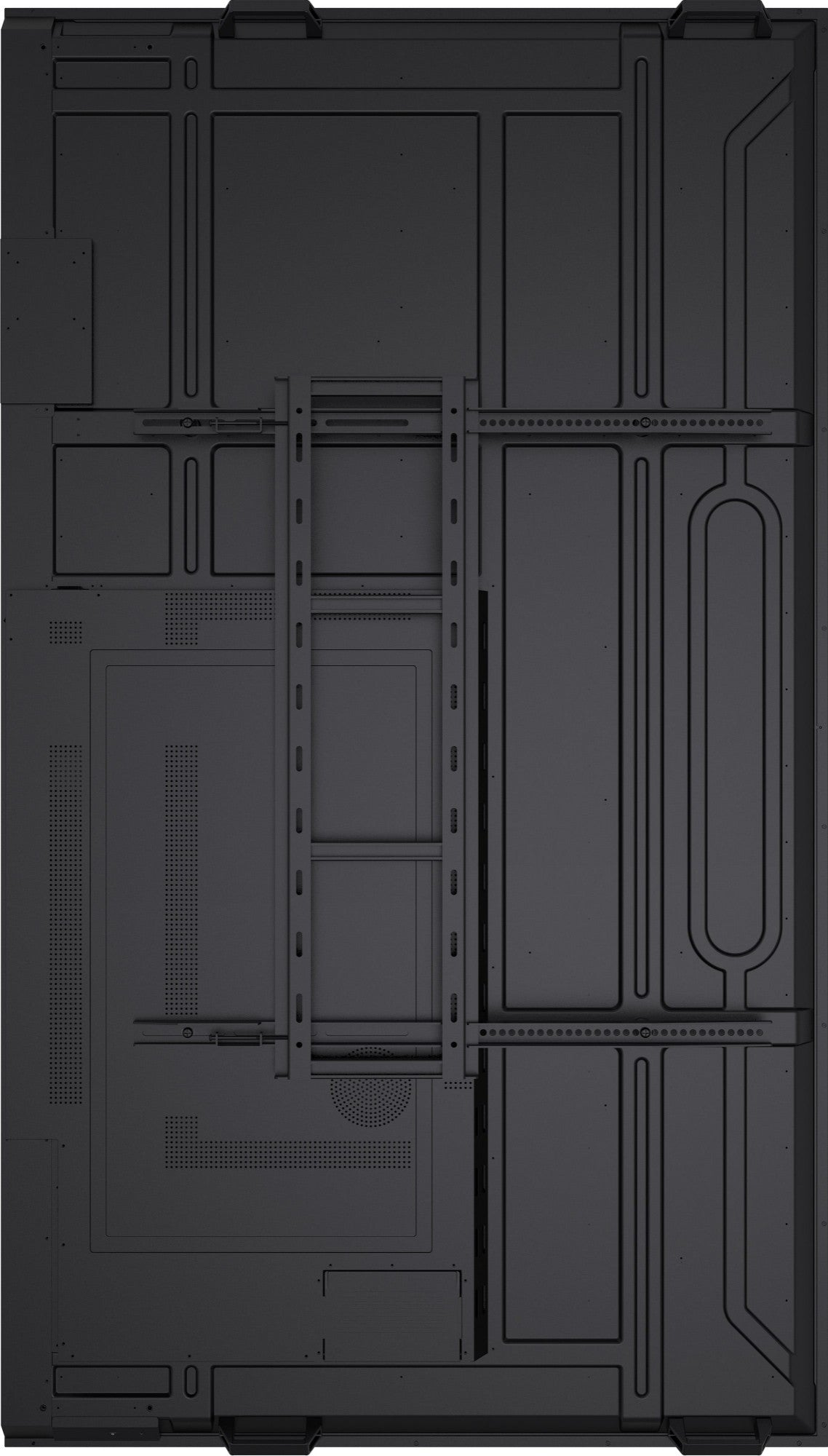

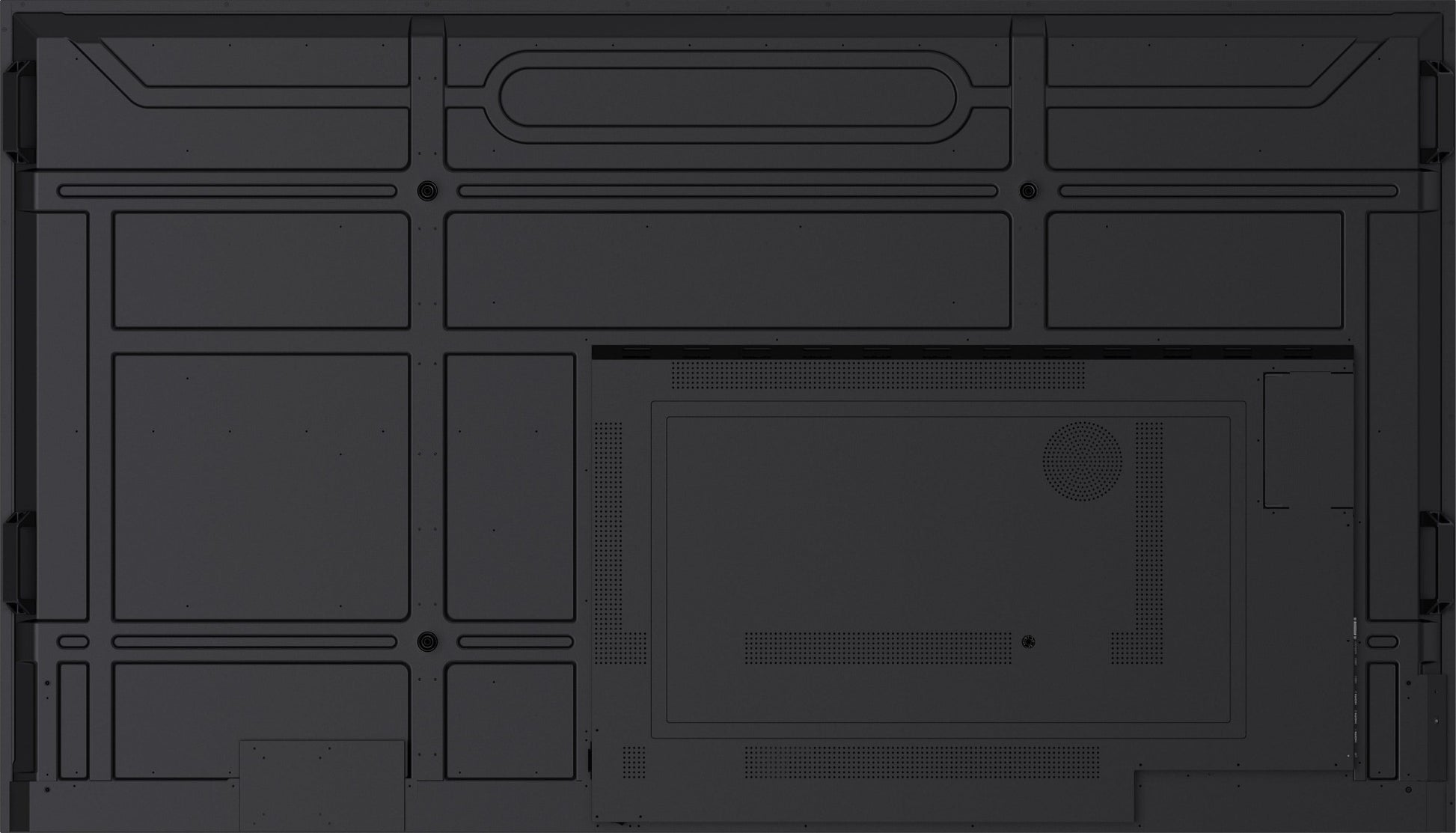

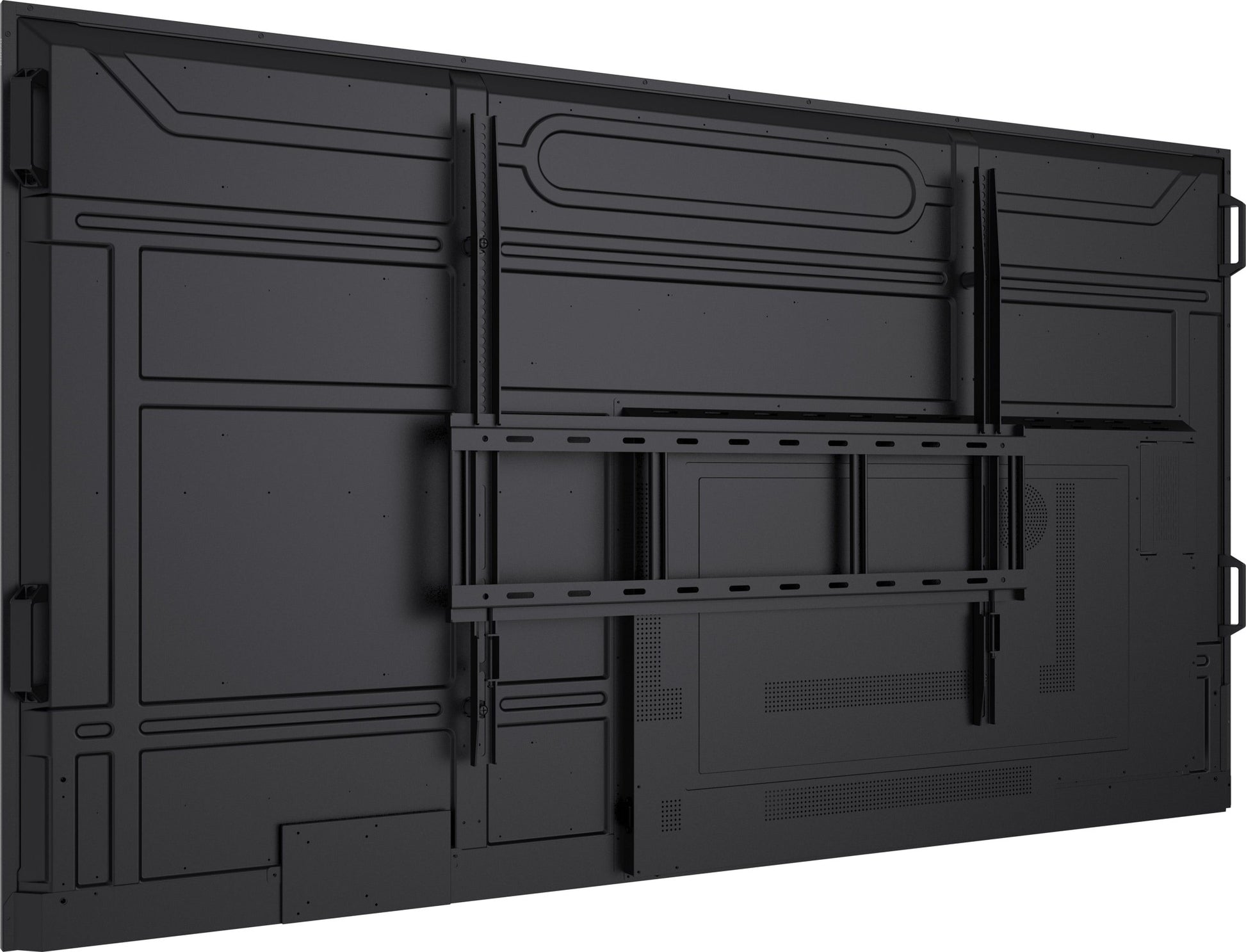

| Panel mounting interface |
800 x 600 mm |
| VESA mounting |
Yes |
| Anti-glare screen |
Yes |
| Screen shape |
Flat |
| Bezel colour |
Black |
| Performance |
| Purpose |
Corporate |
| Operating hours (hours/days) |
24/7 |
| Mean time between failures (MTBF) |
50000 h |
| On Screen Display (OSD) languages |
Traditional Chinese, Czech, Danish, German, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Dutch, Polish, Russian, Swedish |
| On Screen Display (OSD) |
Yes |
| HDCP |
Yes |
| HDCP version |
1.4/2.2 |
| Wi-Fi |
Yes |
| Power |
| Power consumption (off) |
0.3 W |
| Power consumption (typical) |
277 W |
| Power consumption (standby) |
0.5 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Energy efficiency scale |
A to G |
| Energy efficiency class (SDR) |
G |
| Energy efficiency class (HDR) |
Not available |
| Energy consumption (SDR) per 1000 hours |
277 kWh |
| Computer system |
| Processor cores |
4 |
| Processor model |
MT9679 |
| Operating system installed |
Android |
| Internal memory |
4 GB |
| Internal storage capacity |
32 GB |
| Processor manufacturer |
MediaTek |
| Built-in processor |
Yes |
| On-board graphics card model |
Mali-G52 MC1 |
| Processor architecture |
ARM Cortex-A73 |
| Operating system version |
14 |
| Weight & dimensions |
| Width |
1937.8 mm |
| Depth |
79.6 mm |
| Height |
1108.8 mm |
| Weight |
47.9 kg |
| Display width |
1937.8 mm |
| Display depth |
79.6 mm |
| Display height |
1108.8 mm |
| Display weight |
47.9 kg |
| Packaging data |
| Package width |
2095 mm |
| Package depth |
225 mm |
| Package height |
1215 mm |
| Package weight |
62.2 kg |
| Quick start guide |
Yes |
| Remote control included |
Yes |

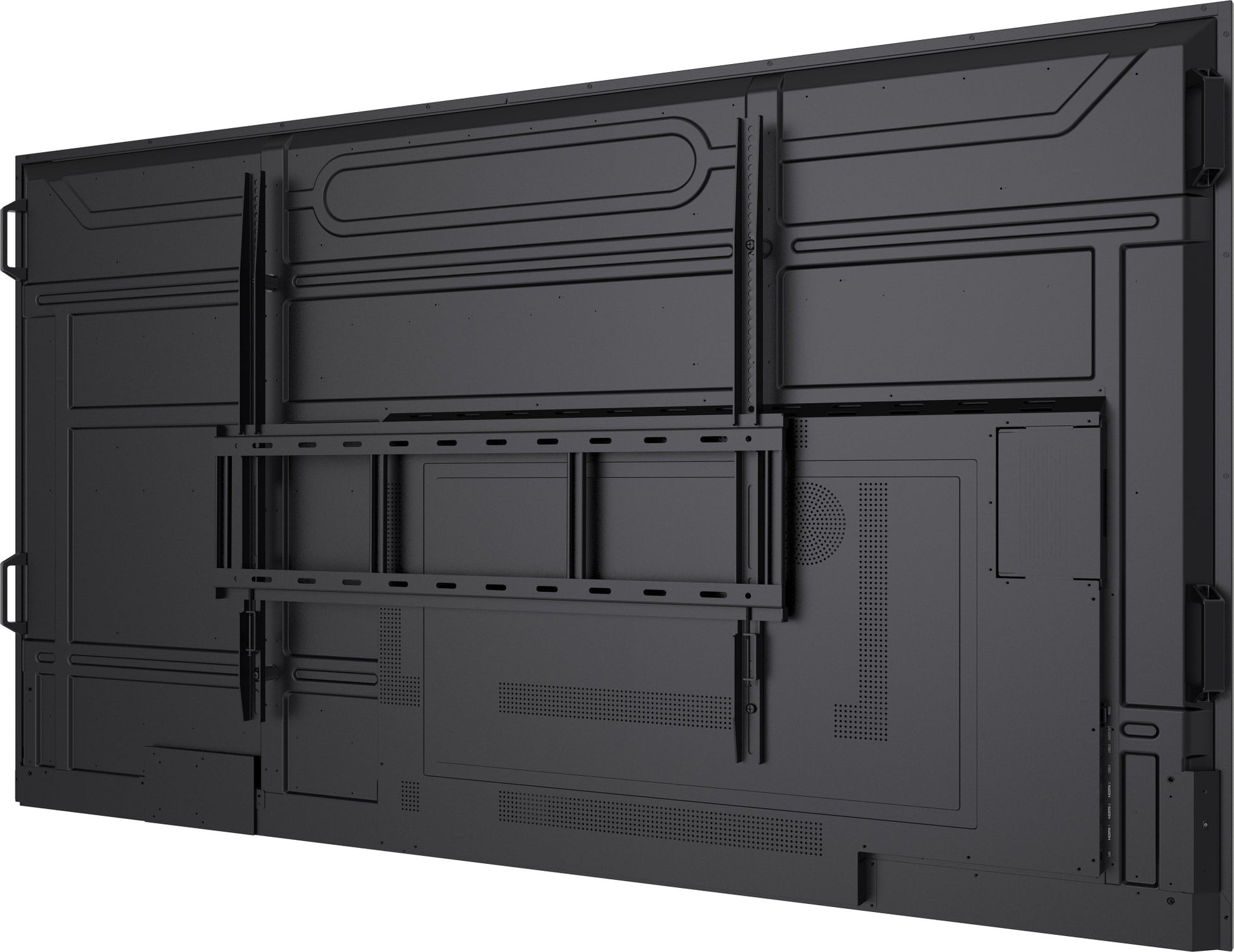

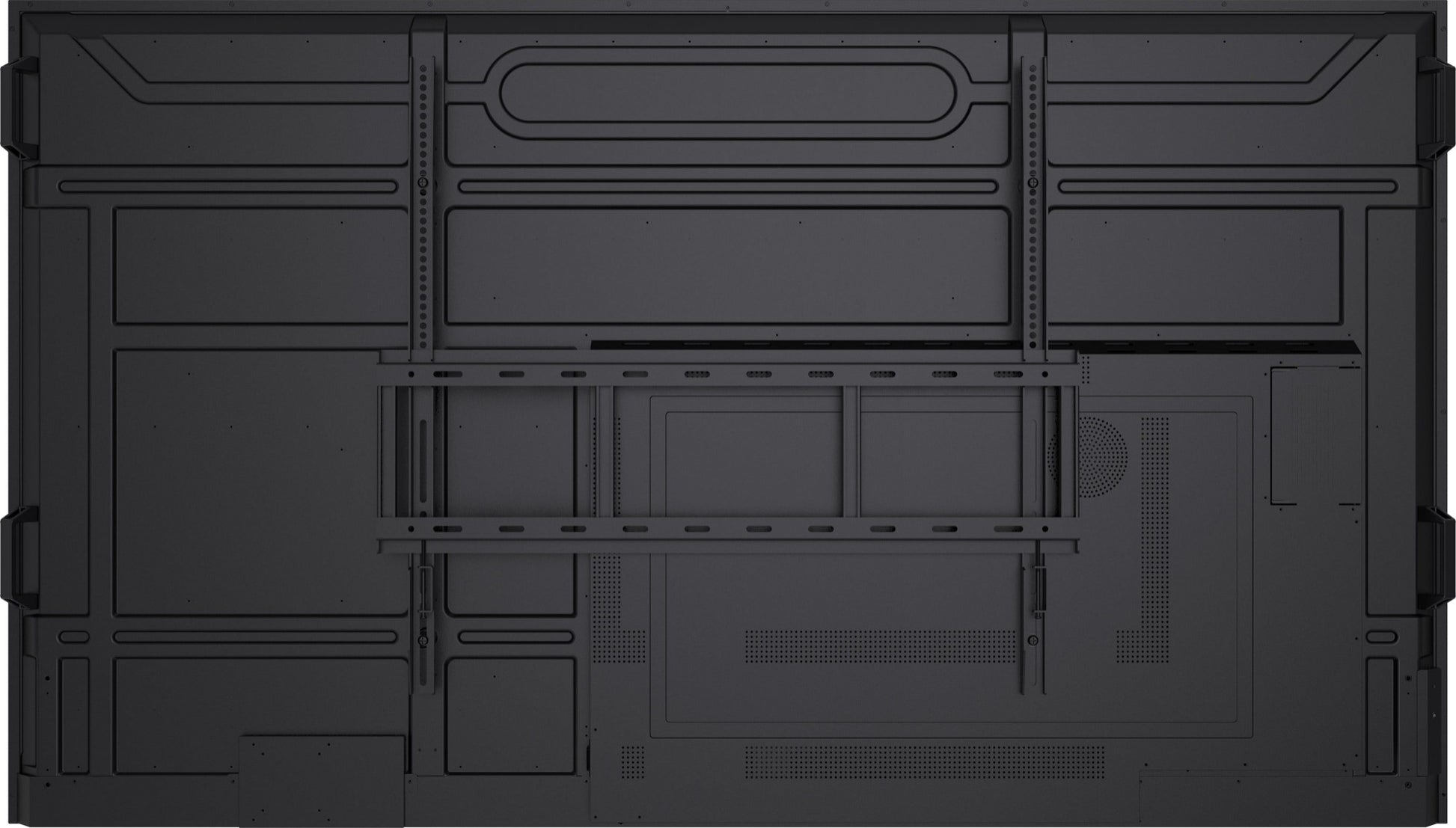

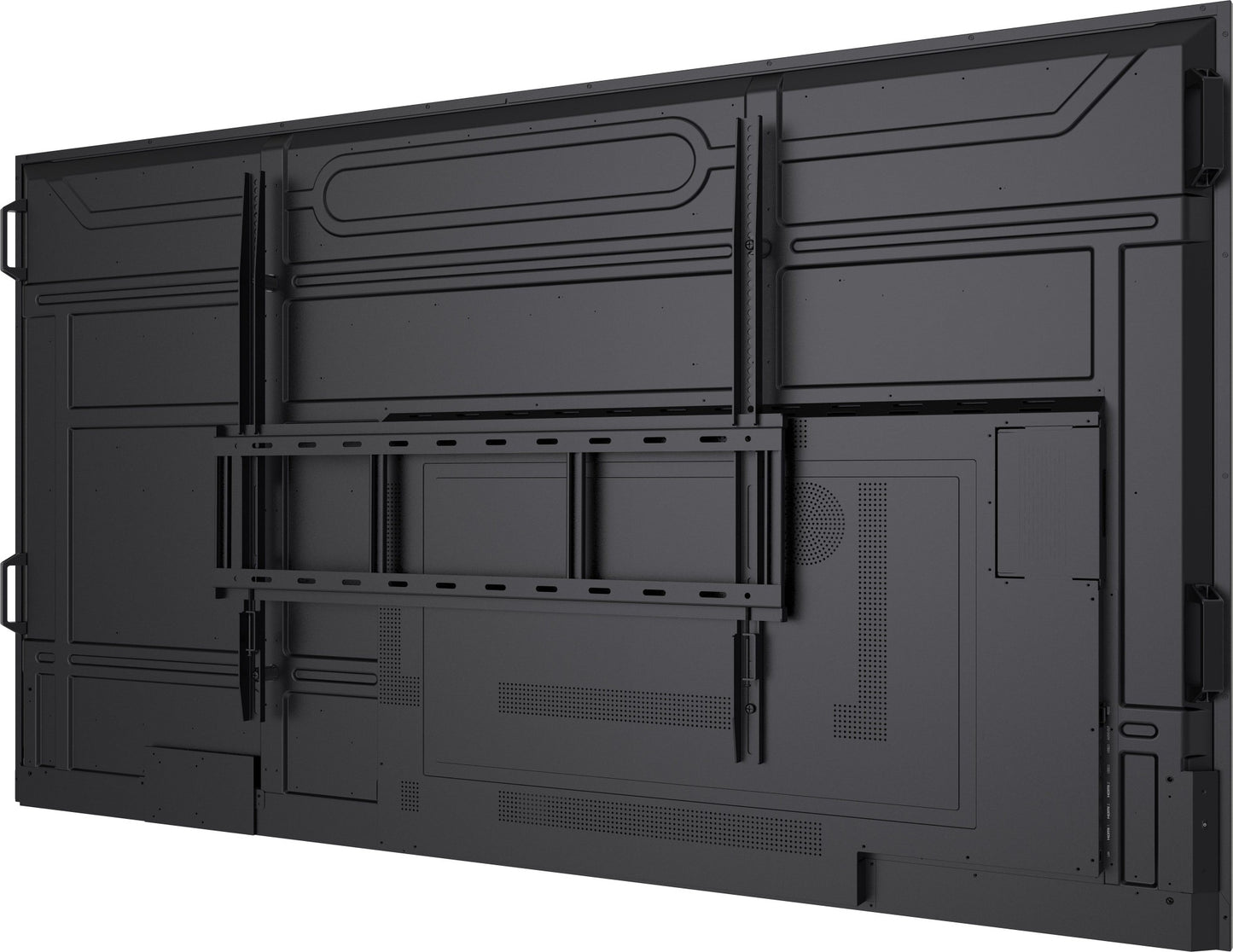

| Mounting kit |
Yes |

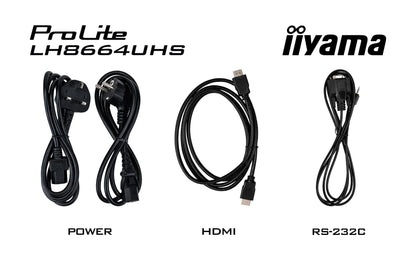

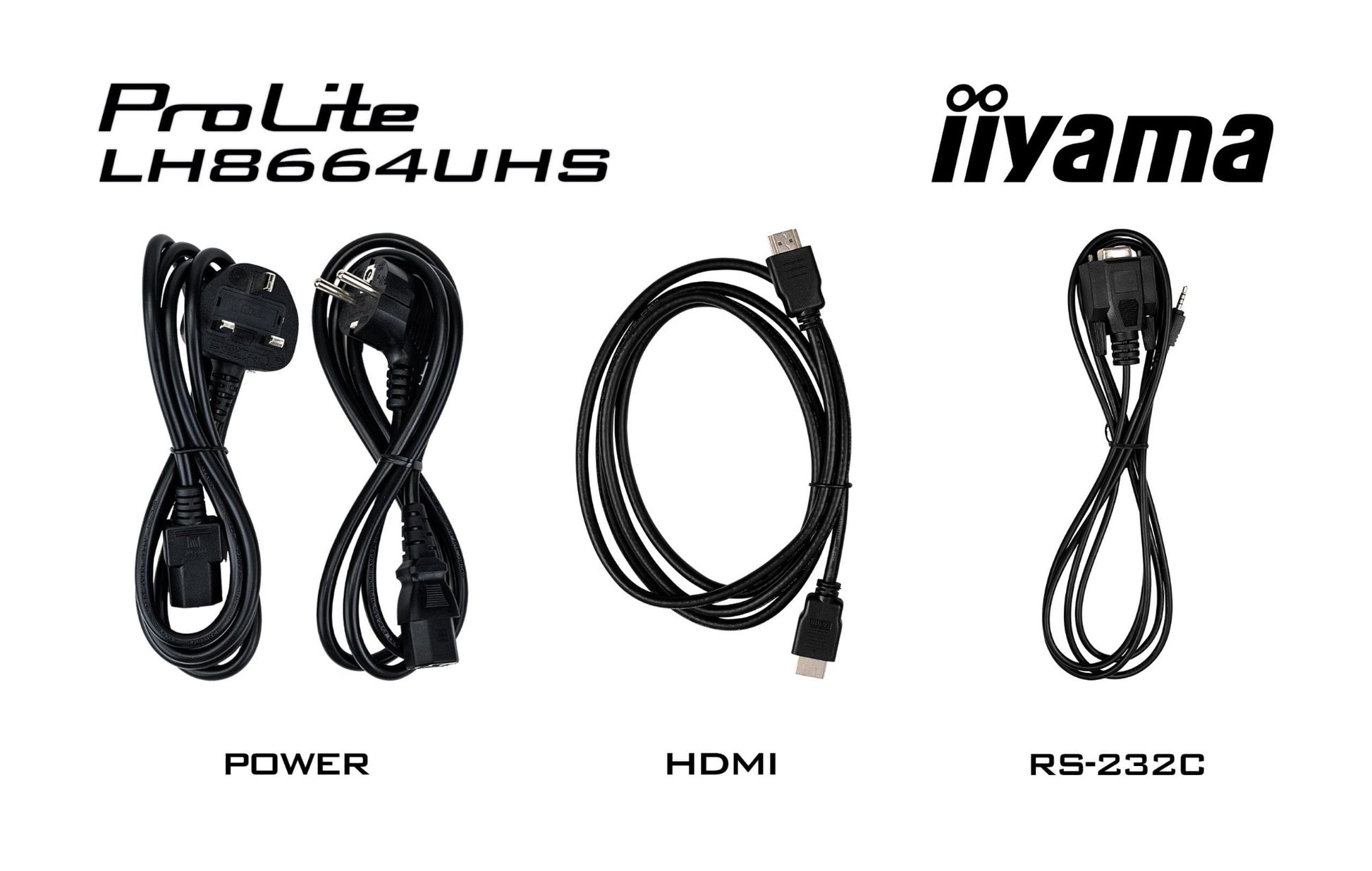

| Cables included |
AC, HDMI, RS-232 |
| Packaging content |
| Quick start guide |
Yes |
| Remote control included |
Yes |
| Mounting kit |
Yes |
| Cables included |
AC, HDMI, RS-232 |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Technical details |
| VESA mounting |
Yes |
| USB connector type |
USB Type-A, USB Type-C |
| Power supply type |
Internal |
| Panel type |
IPS |
| DisplayPort version |
1.2 |
| Playback media |
Yes |
| User controls |
network (network status, WiFi, ethernet, hotspot), picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temp., colour control, over scan, picture reset), audio (balance, treble, bass, volume, audio out, max. volume, min. volume, mute, audio out sync, speaker setting, audio reset), OSD settings (OSD timeout, OSD H position, OSD V position, OSD transparency, information OSD), General (logo and animation, wallpaper, no signal image, schedule, off timer), screen (zoom mode, custom zoom, system rotation, screen reset), device (power on status, RS232 routing, IR control, physical button, power saving, panel saving, monitor information, other), channel (boot on source, rename input channel, auto source switching, signal lost detection, HDMI version), system (language, system update, setting reset, factory reset, Android setting), admin (menu lock, meeting room, HDMI CEC, screen Share, Miracast standby, log export) |
| Sustainability certificates |
EPEAT, ErP |
| Compliance certificates |
CB, CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE |
| Network |
| Wi-Fi standards |
Wi-Fi 5 (802.11ac) |
| Wi-Fi |
Yes |
| Ethernet LAN |
Yes |
| Thin Client |
| Processor model |
MT9679 |
| Operating system installed |
Android |
| Internal memory |
4 GB |
| Internal storage capacity |
32 GB |
| Other features |
| USB connector type |
USB Type-A, USB Type-C |
| Power supply type |
Internal |
| Panel type |
IPS |
| DisplayPort version |
1.2 |
| Wi-Fi standards |
Wi-Fi 5 (802.11ac) |
| Wi-Fi |
Yes |
| Mean time between failures (MTBF) |
50000 h |
| Bezel width (top) |
2.2 cm |
| Bezel width (side) |
2.15 cm |
| Bezel width (bottom) |
2.2 cm |
| Quick start guide |
Yes |
| Energy efficiency scale |
A to G |
