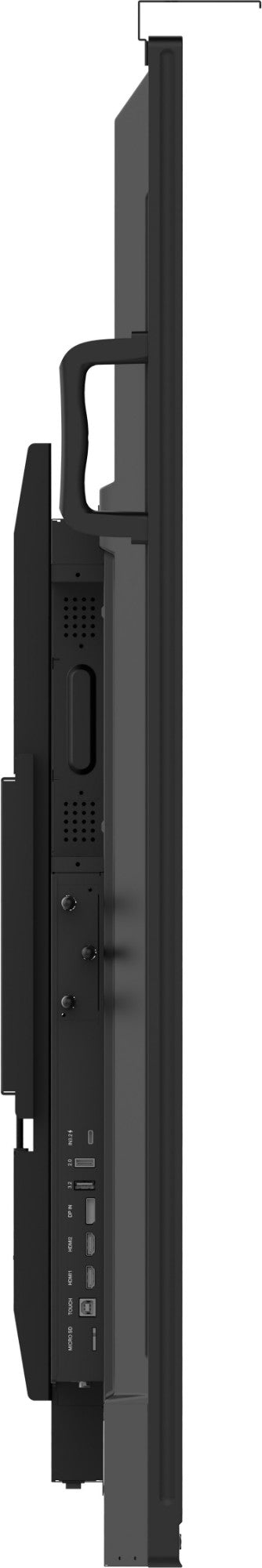

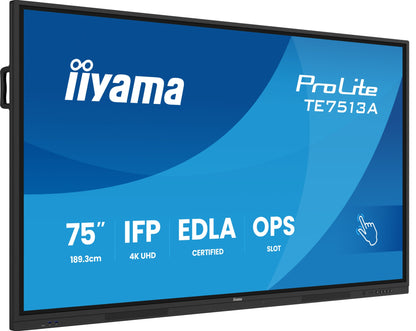

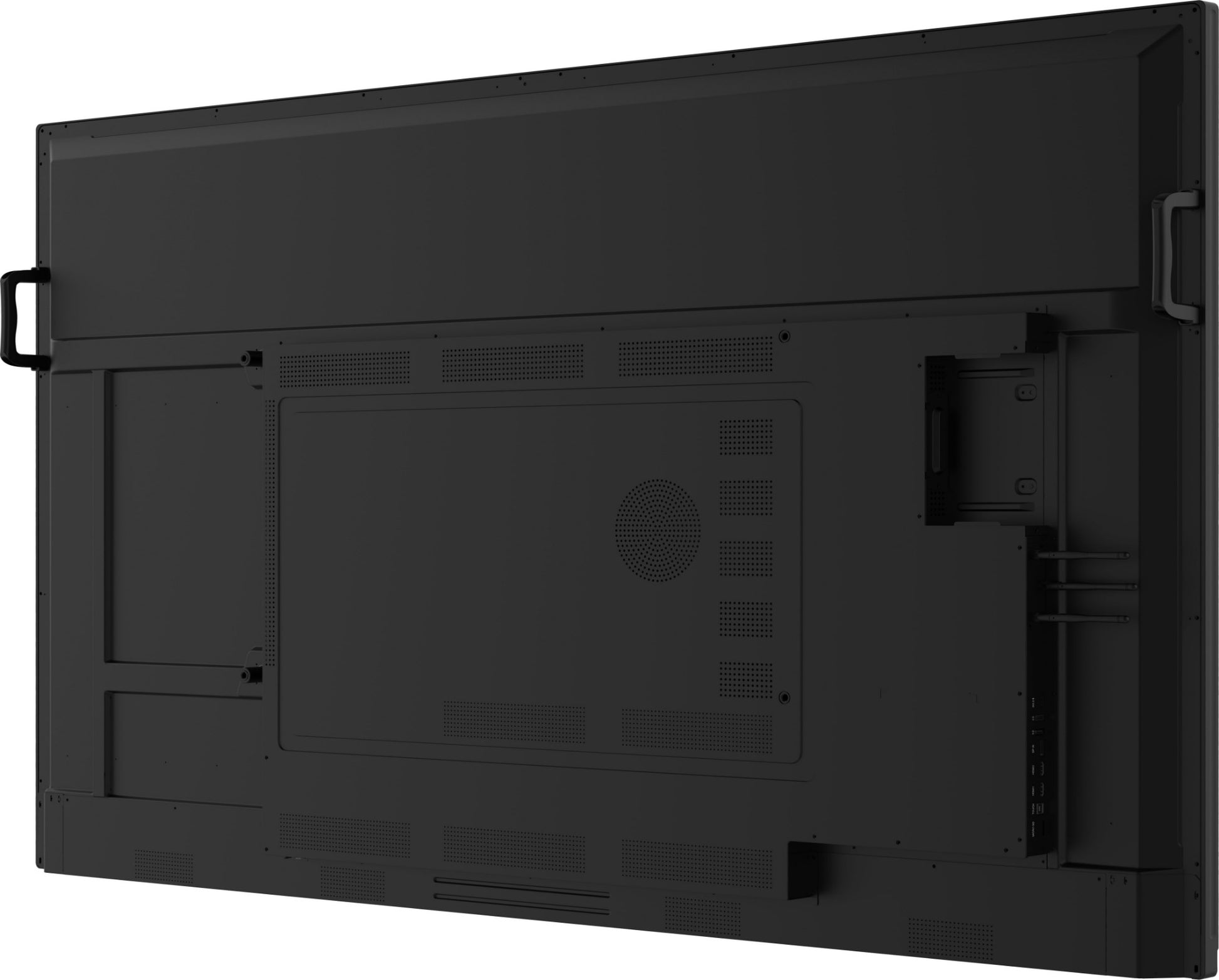

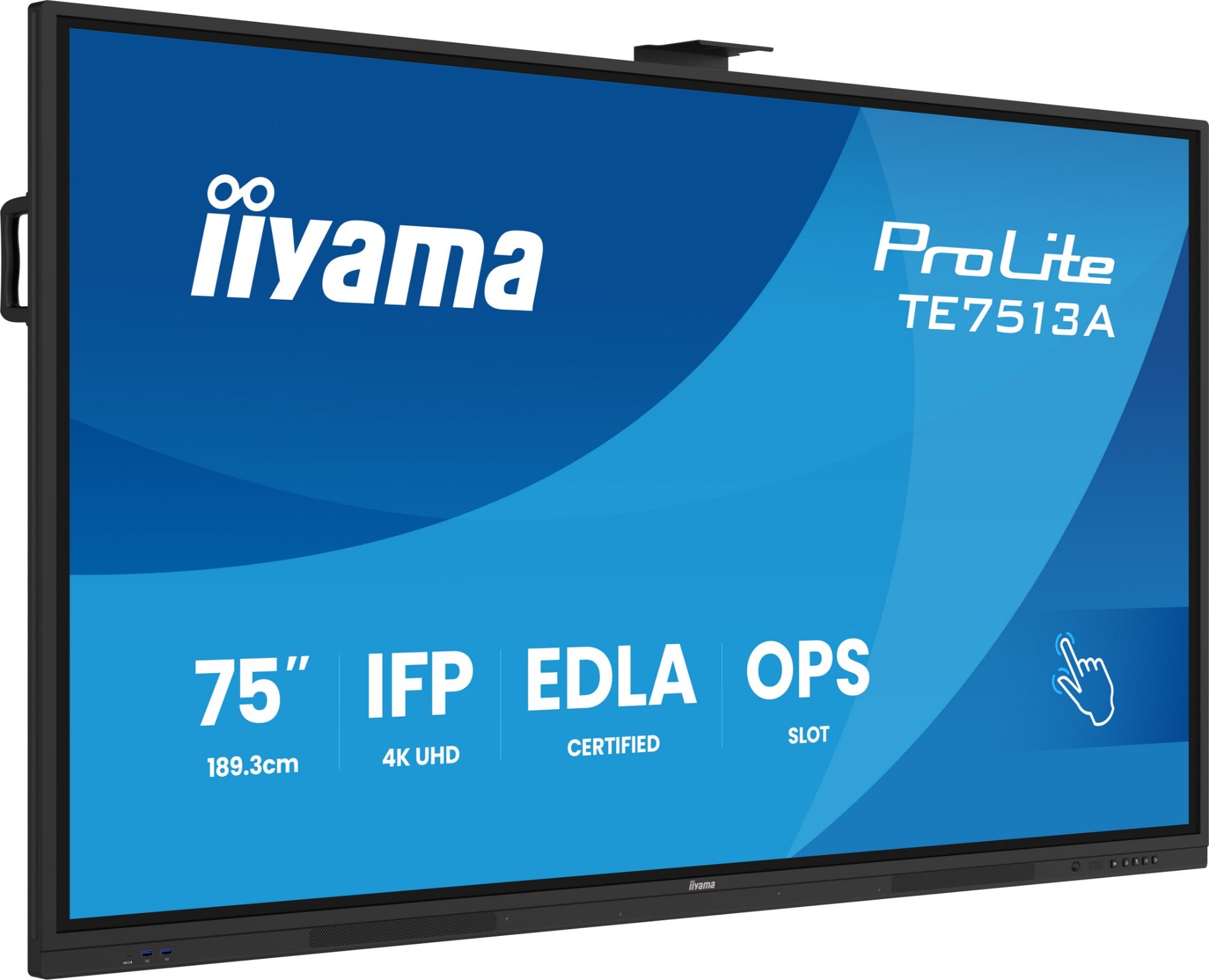

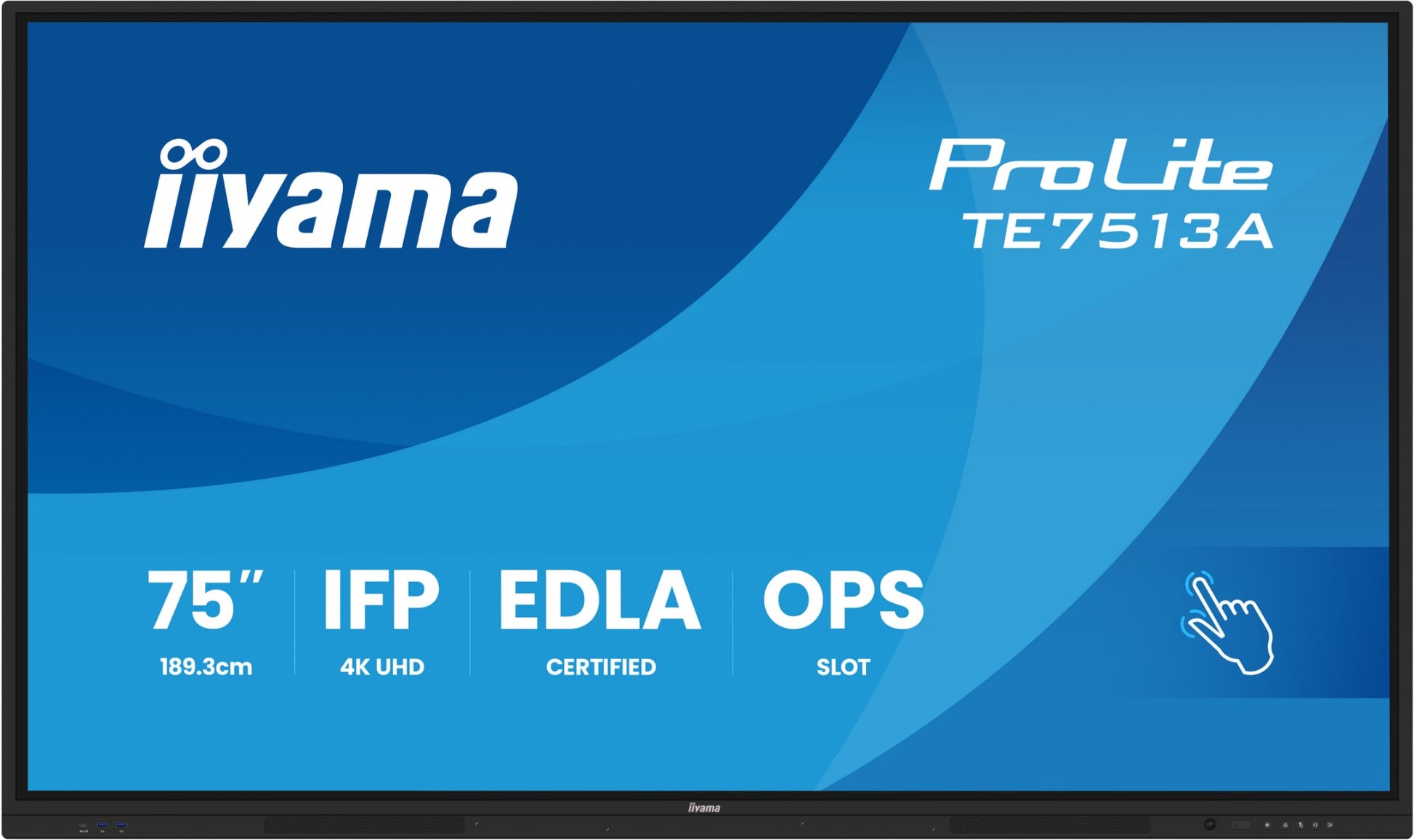

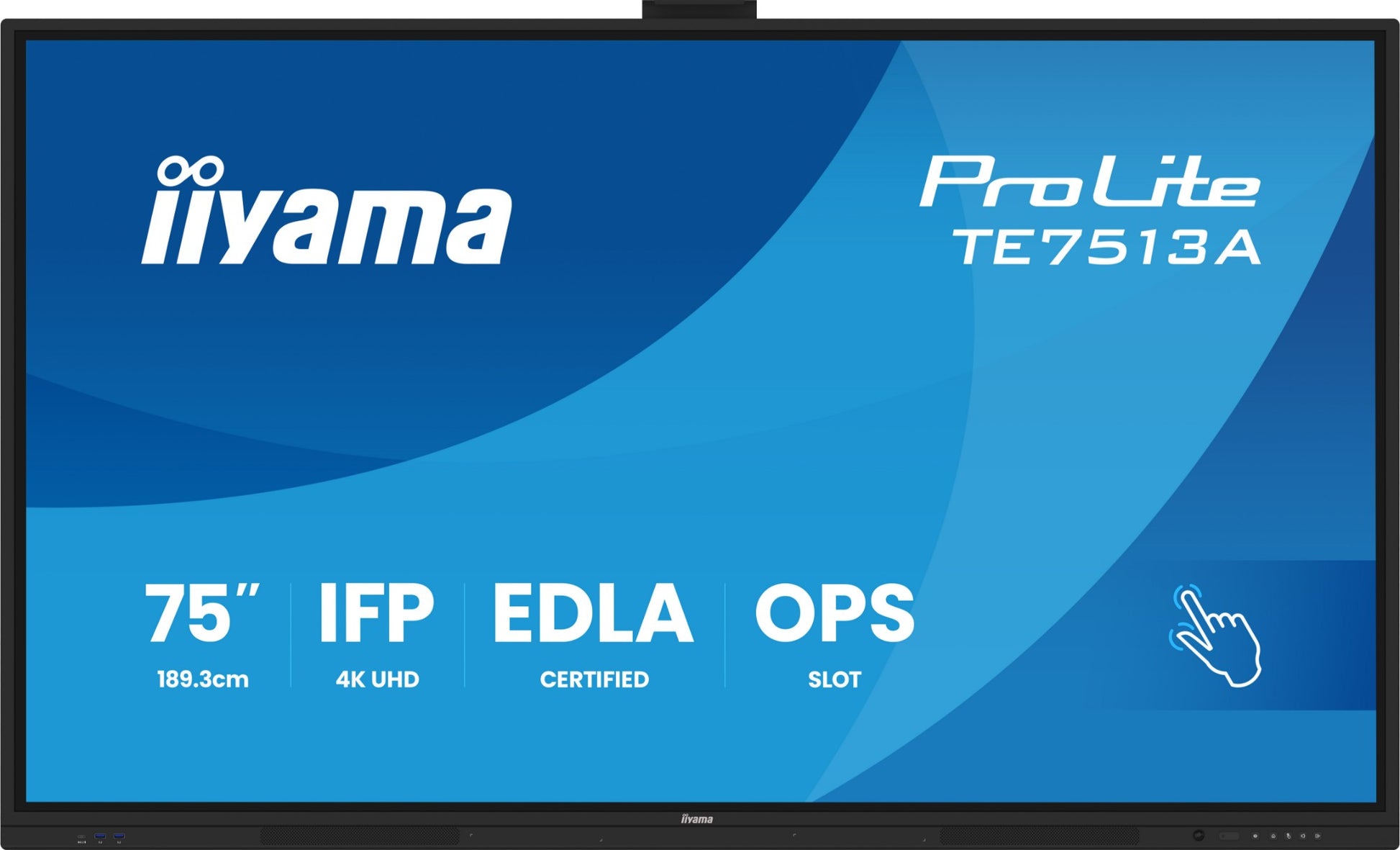

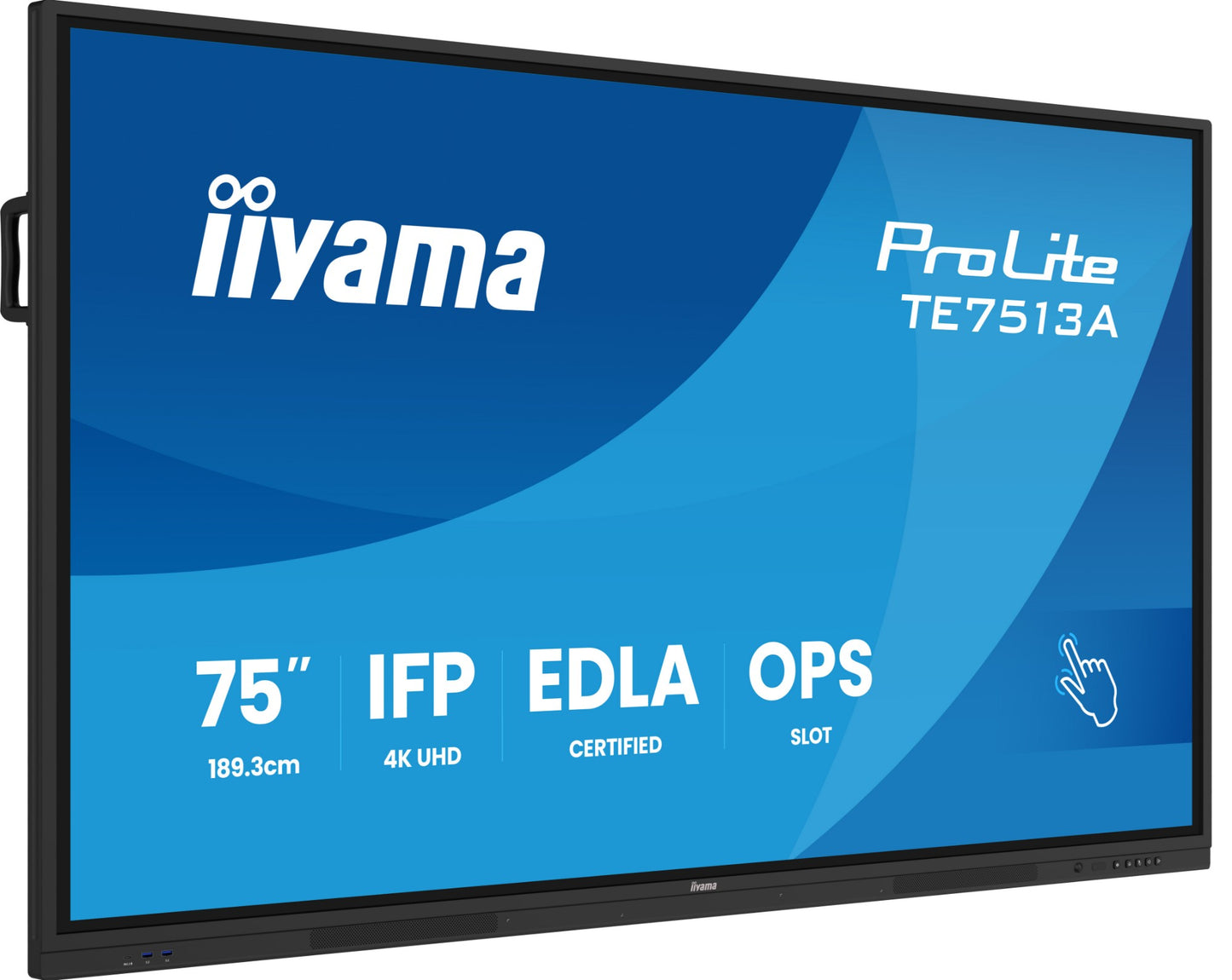

iiyama TE7513A-B2AG Signage Display Interactive flat panel 190.5 cm (75") Wi-Fi 500 cd/m² 4K Ultra HD Black Touchscreen Built-in processor Android 24/7
iiyama TE7513A-B2AG Signage Display Interactive flat panel 190.5 cm (75") Wi-Fi 500 cd/m² 4K Ultra HD Black Touchscreen Built-in processor Android 24/7
Regular price
£1,615.90 GBP
Regular price
Sale price
£1,615.90 GBP
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability

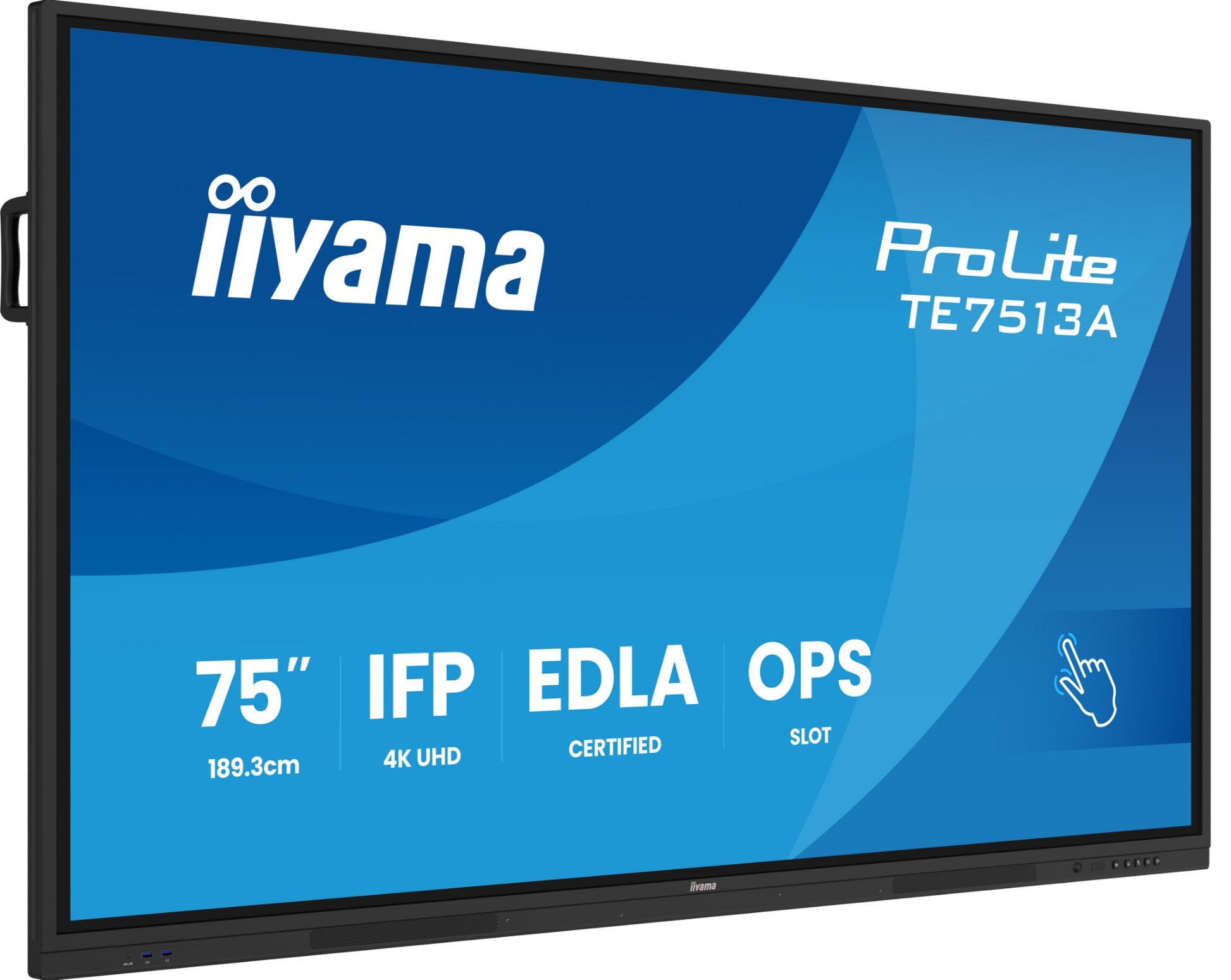

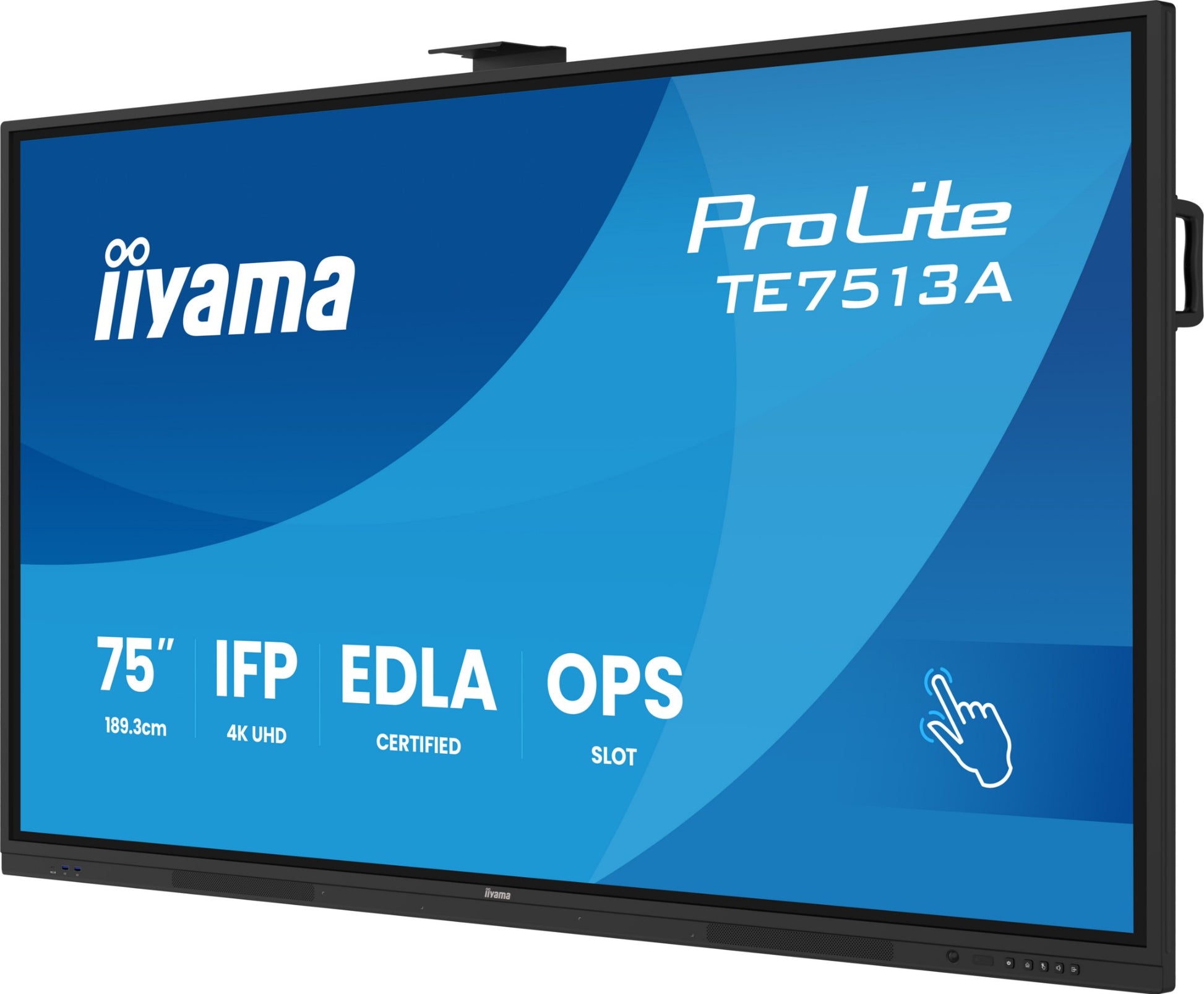

The TE7513A-B2AG is a cutting-edge 4K UHD Google EDLA Certified interactive display that redefines performance and precision. Featuring a Zero-Gap Air Bonding LCD screen to eliminate parallax and with PureTouch-IR+ with Palm Rejection, it ensures smooth, accurate interaction. Powered by iiWare 21E with Android 14-EDLA, WiFi-6E with Bluetooth 5.0 connectivity, iiControl (DMS), iiShare and integrated EShare app (wireless screen sharing), it integrates seamlessly into your ecosystem. Enjoy added features like a PIR motion sensor for energy efficiency; perfect for workplaces and educational spaces, it fosters collaboration, communication, and progress.
Specifications
| Display | |
|---|---|
| Panel type | IPS |
| Display number of colours | 1.07 billion colours |
| Number of simultaneous touchpoints | 40 |
| Touchscreen | Yes |
| Active display area (W x H) | 1650 x 928 mm |
| Display diagonal | 190.5 cm (75") |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/m² |
| HD type | 4K Ultra HD |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.4296 x 0.4296 mm |
| Display diagonal (metric) | 189.3 cm |
| Native aspect ratio | 16:9 |
| Horizontal scan range | 30 - 135 kHz |
| Anti-glare screen | Yes |
| Touchscreen technology | PureTouch-IR |
| Surface hardness | 7H |
| Glass thickness | 3.2 mm |
| Ports & interfaces | |
| USB connector type | USB Type-A, USB Type-C, USB Type-B |
| DisplayPort version | 1.2 |
| USB port | Yes |
| RS-232C | Yes |
| Wi-Fi standards | Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11b, 802.11g, 802.11a |
| Wi-Fi | Yes |
| DisplayPorts quantity | 1 |
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Yes |
| Ethernet LAN | Yes |
| HDMI ports quantity | 3 |
| Ethernet LAN data rates | 1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 2 |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity | 6 |
| OPS module slot | Yes |
| HDMI input ports quantity | 2 |
| HDMI output ports quantity | 1 |
| USB 2.0 Type-B ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Audio Return Channel (ARC) | Yes |
| Audio | |
| Number of built-in speakers | 2 |
| RMS rated power | 60 W |
| Built-in speaker(s) | Yes |
| Design | |
| Product design | Interactive flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal |
| Bezel width (top) | 1.65 cm |
| Bezel width (side) | 1.65 cm |
| Bezel width (bottom) | 4.1 cm |
| Product colour | Black |

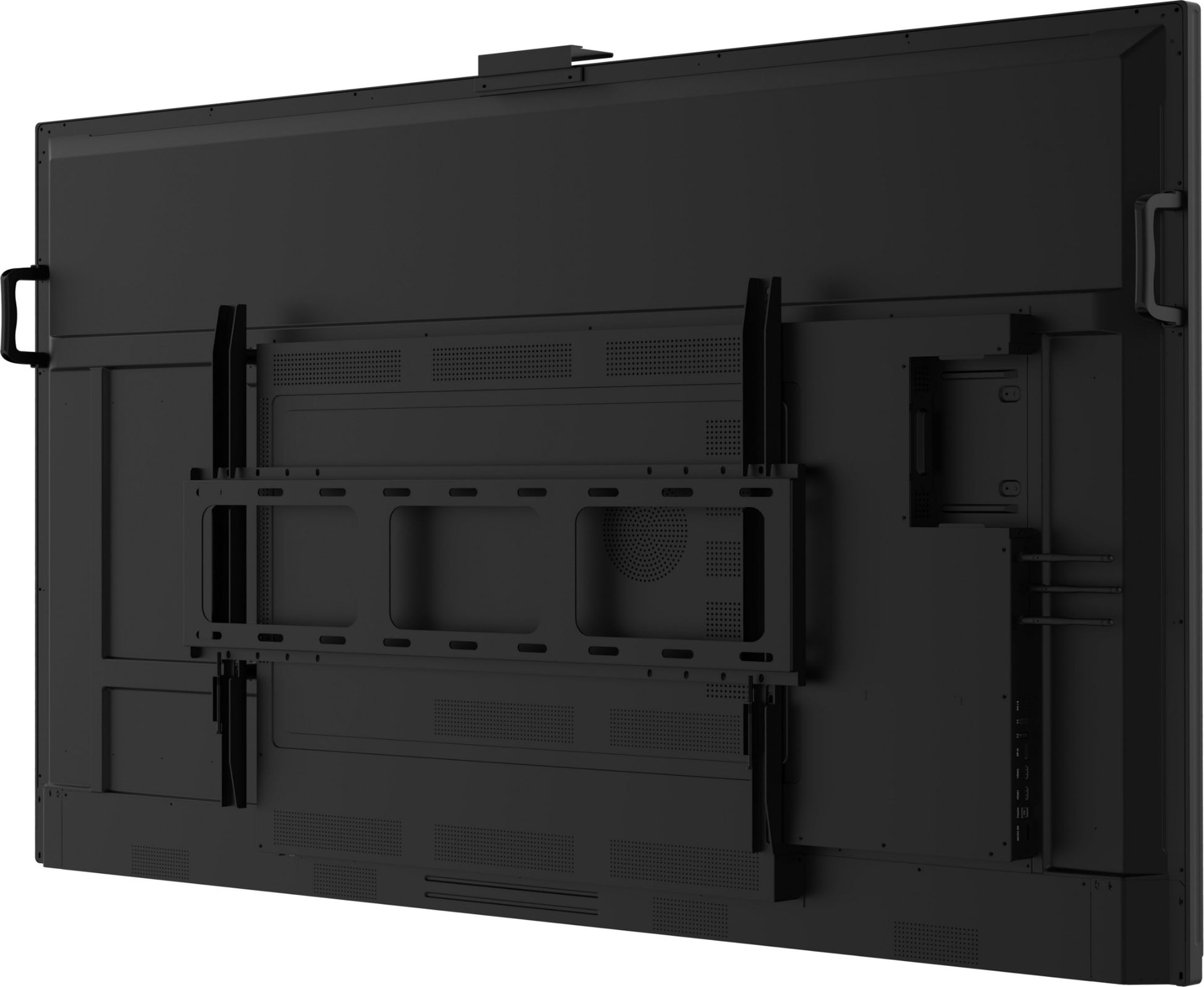

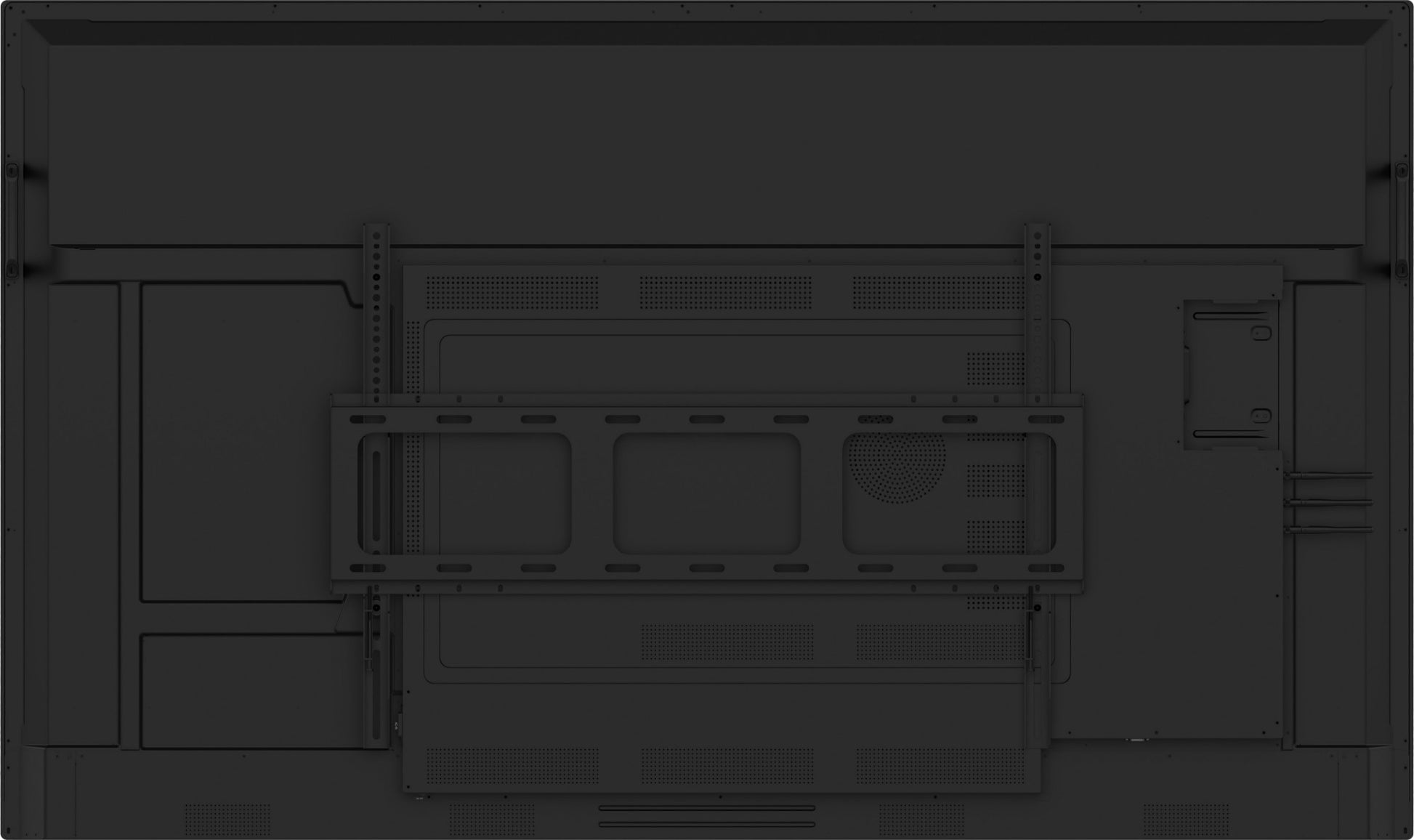

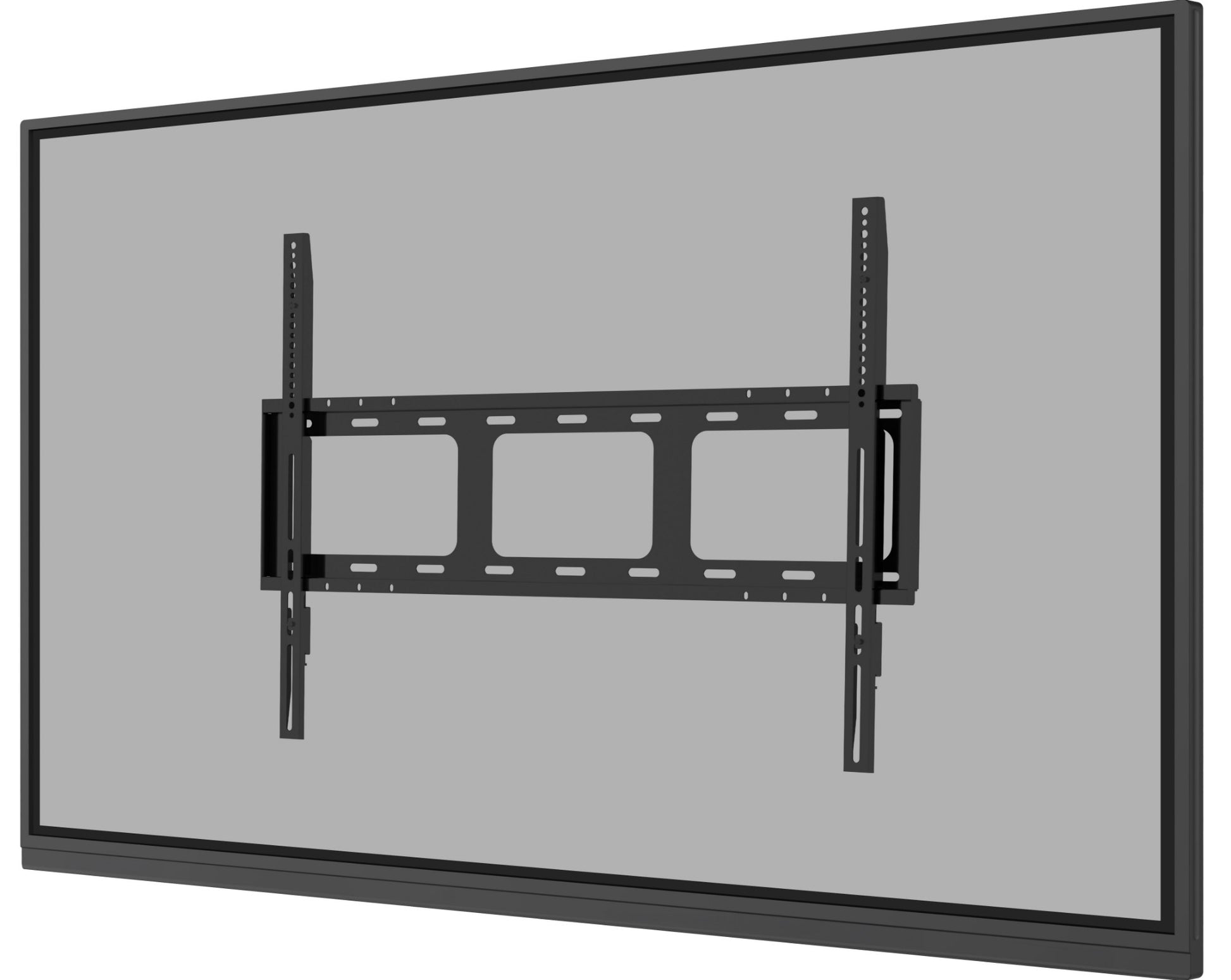

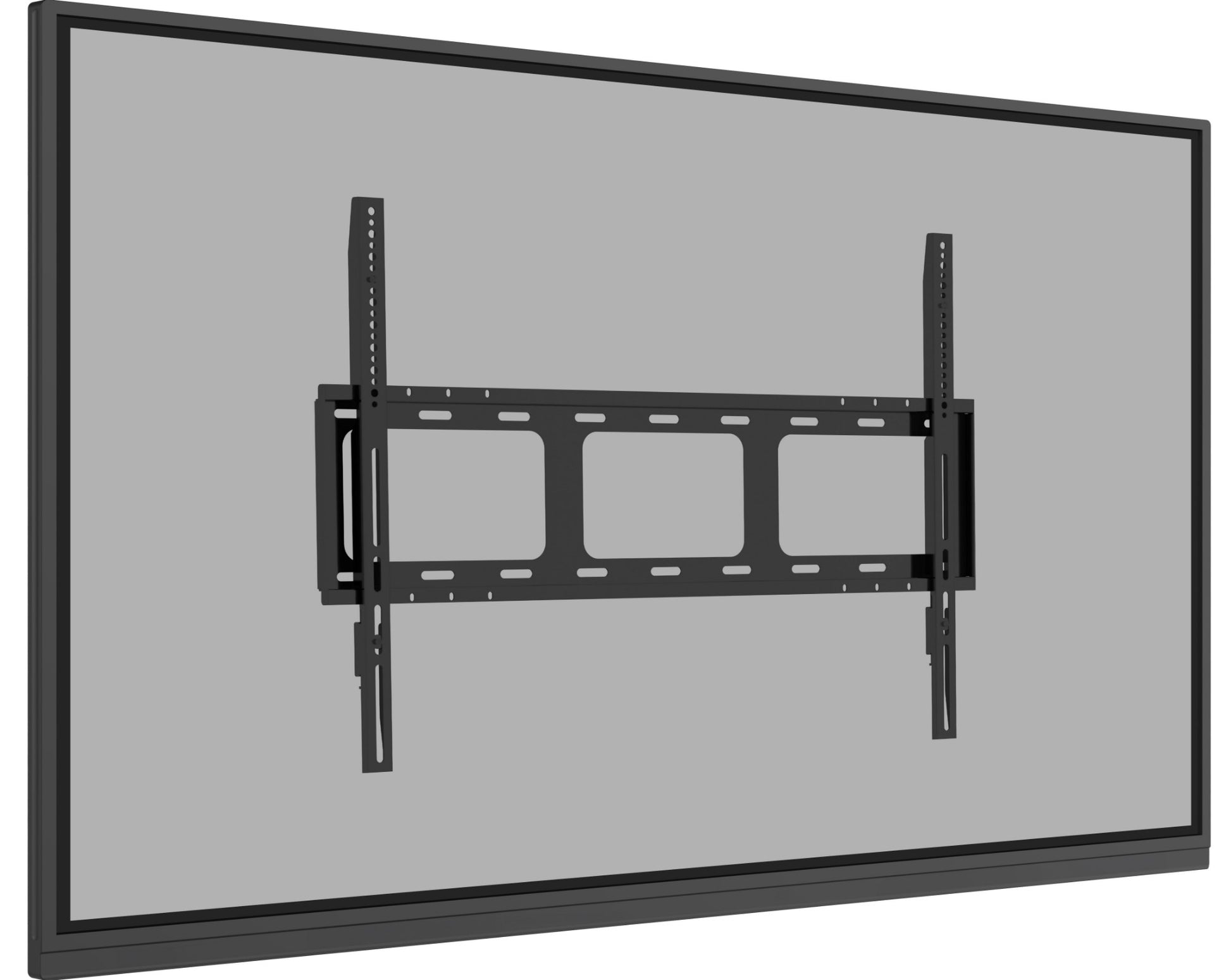

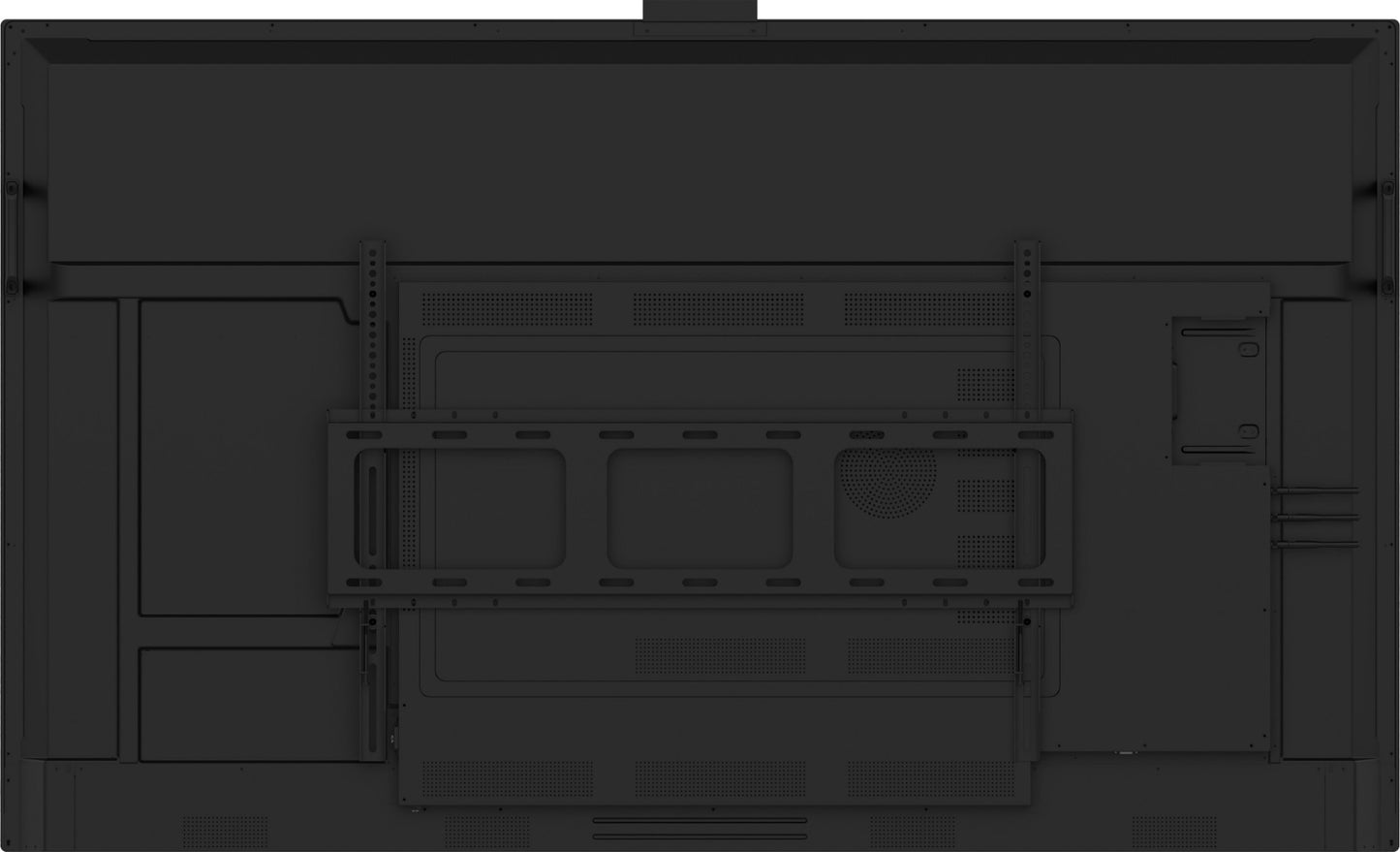

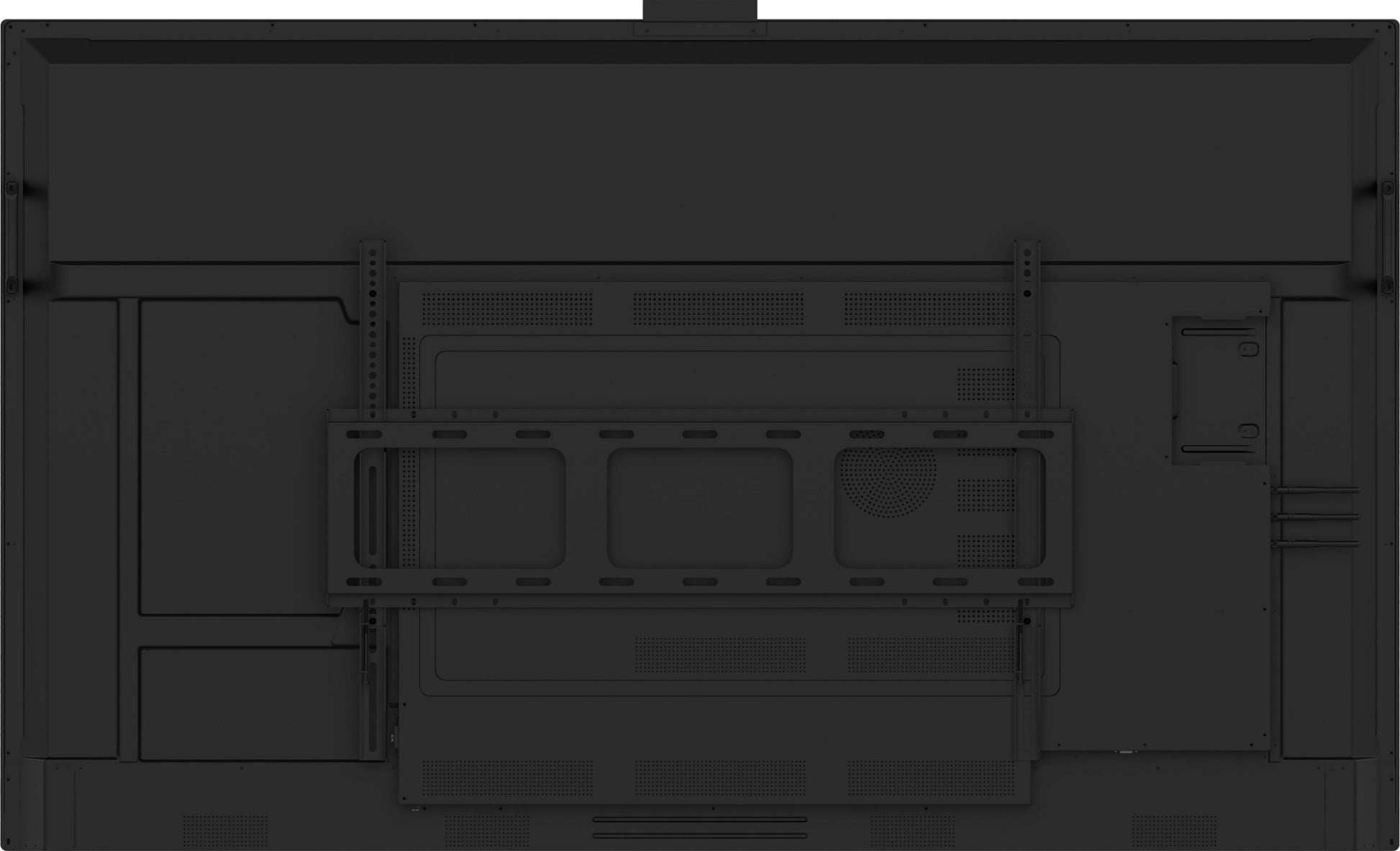

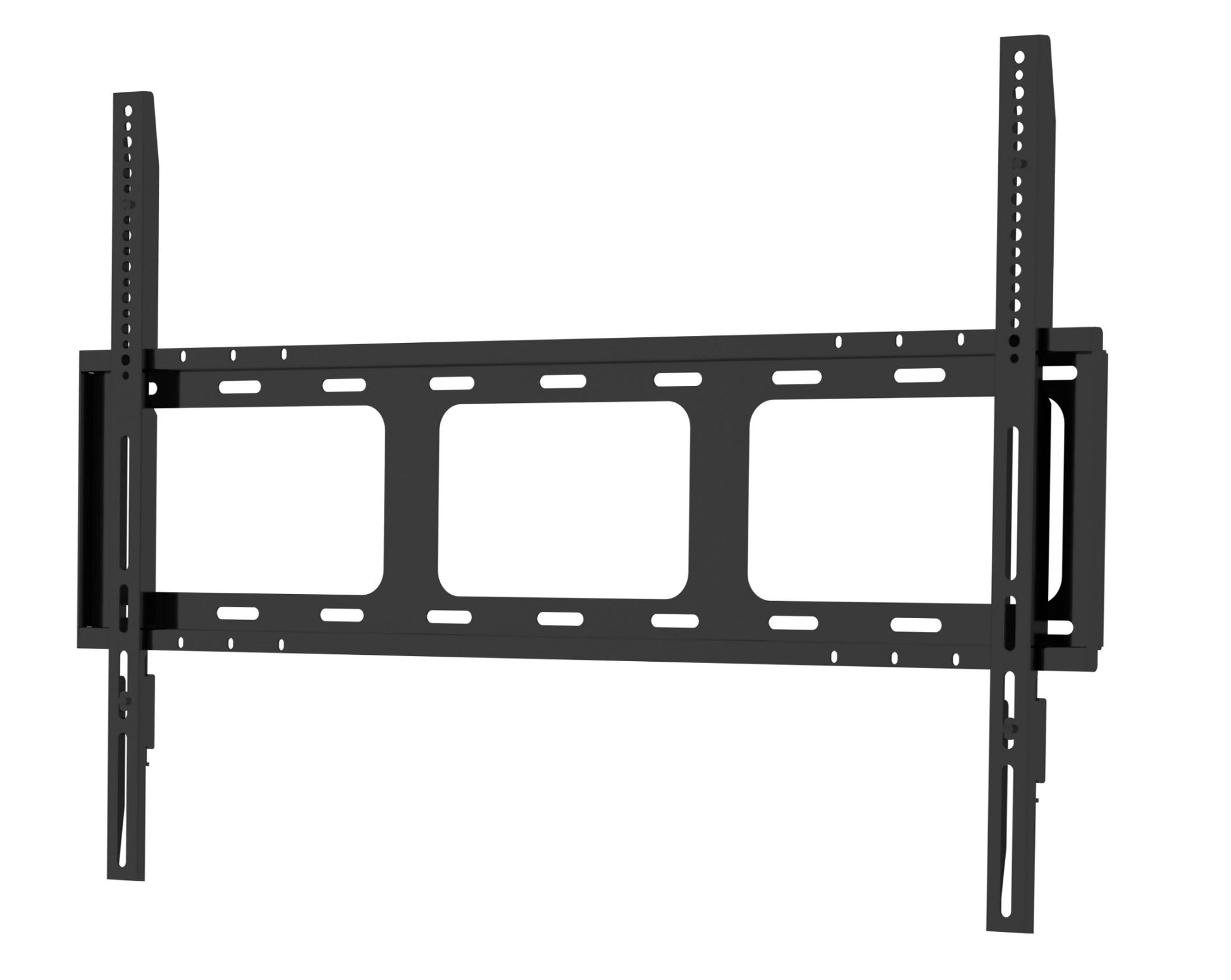

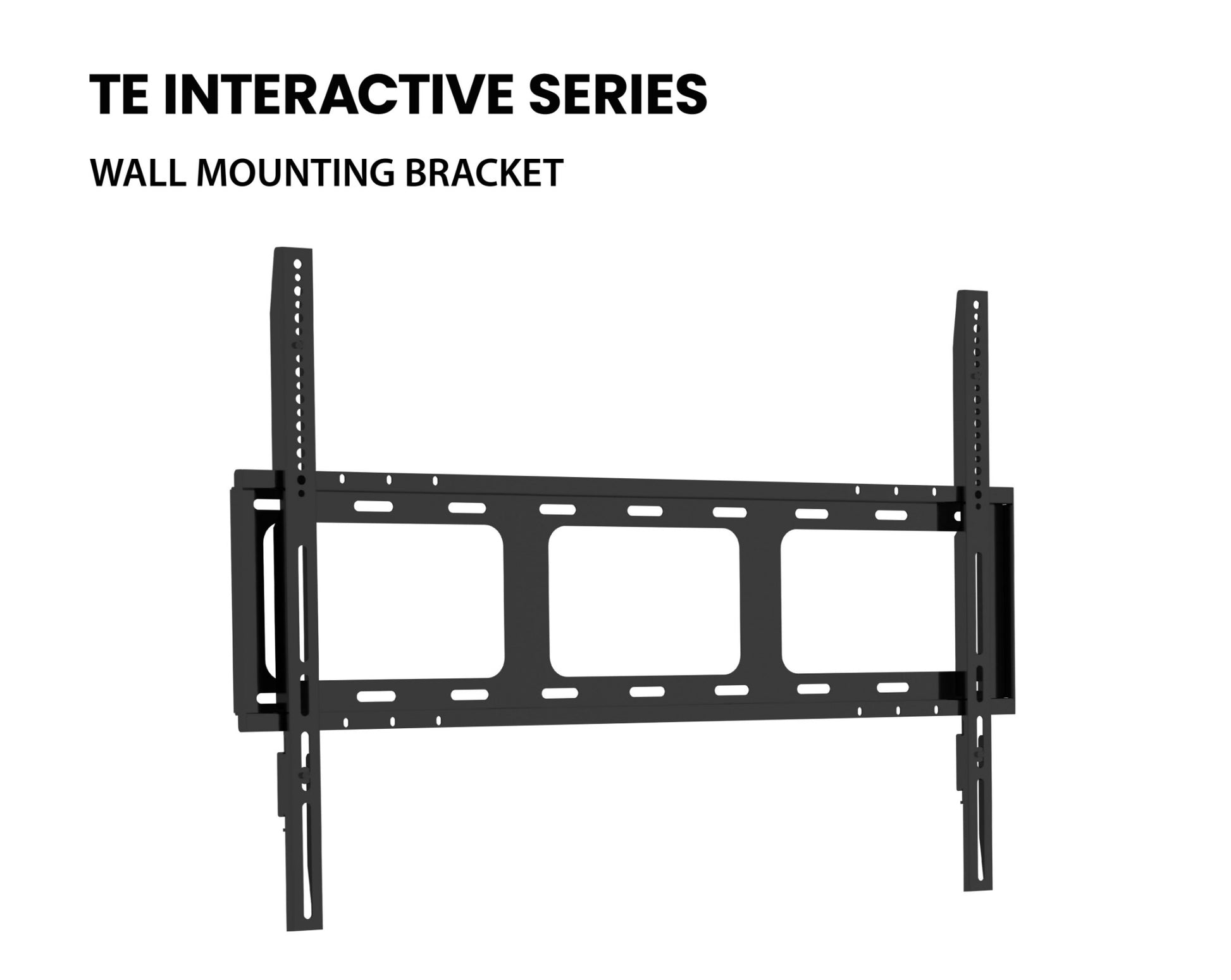

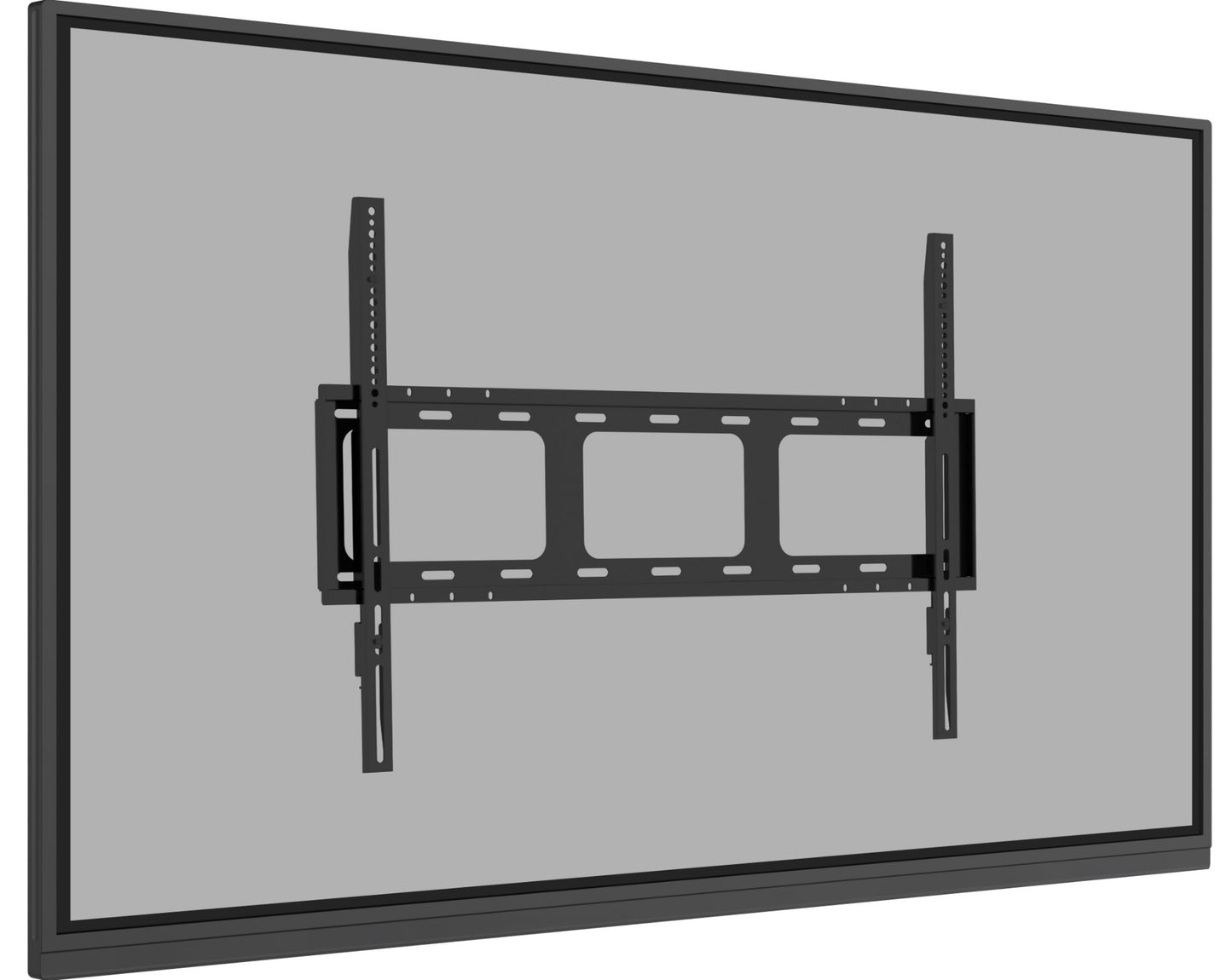

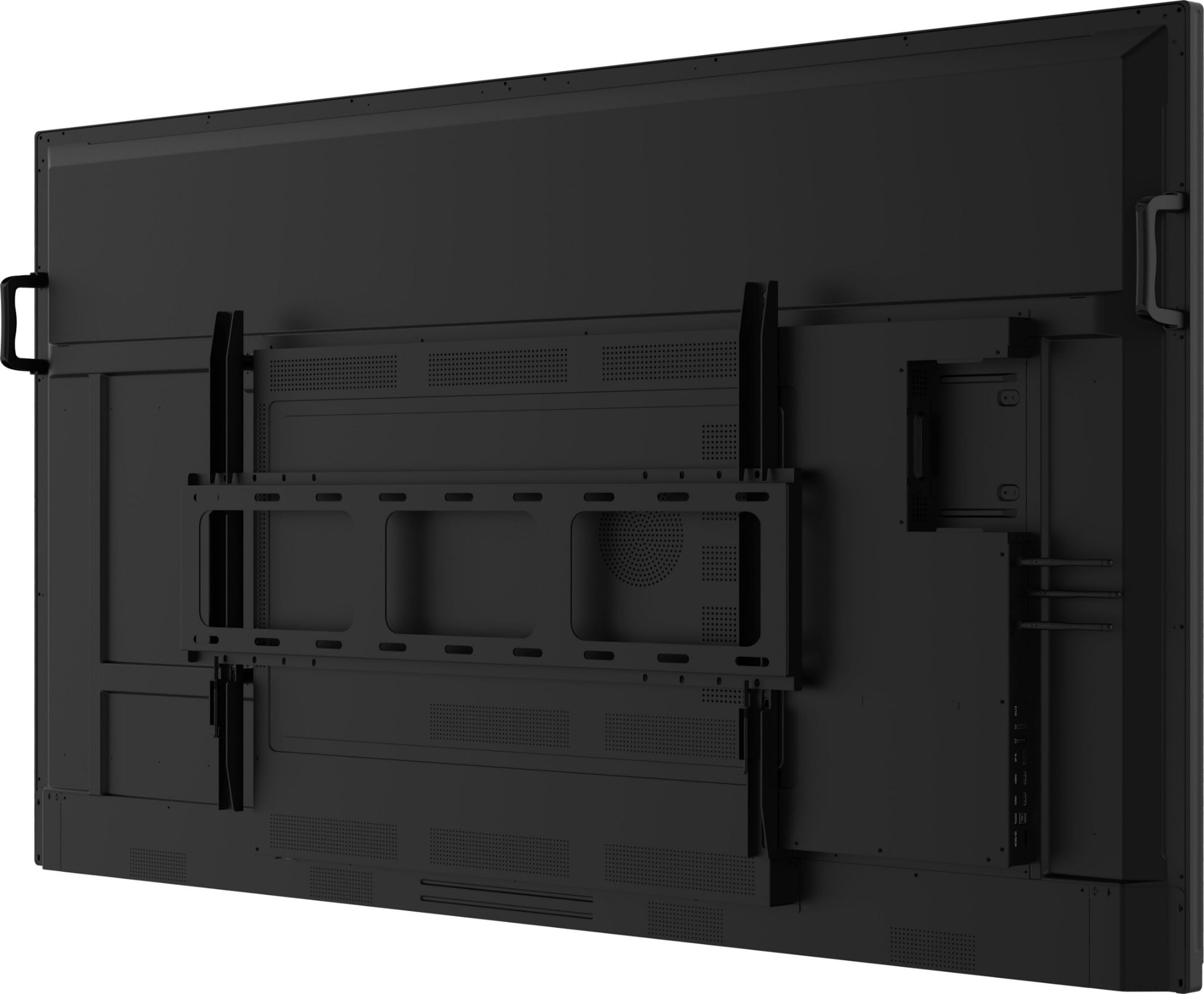

| Panel mounting interface | 800 x 400 mm |
| VESA mounting | Yes |
| Anti-glare screen | Yes |
| Positioning accuracy | 1 mm |
| Bezel colour | Black |
| Performance | |
| Purpose | Education |
| Operating hours (hours/days) | 24/7 |
| Mean time between failures (MTBF) | 50000 h |
| On Screen Display (OSD) languages | Czech, Danish, German, English, Spanish, Estonian, Finnish, French, Hungarian, Italian, Lithuanian, LAT, Norwegian, Dutch, Polish, Russian, Swedish, Ukrainian, CAT |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 13 |
| HDCP | Yes |
| HDCP version | 2.2 |
| Wi-Fi | Yes |
| Power | |
| Power consumption (off) | 0.3 W |
| Power consumption (typical) | 217 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 188 kWh |
| Computer system | |
| Computer system | Yes |
| Operating system installed | Android |
| Internal memory | 8 GB |
| Internal storage capacity | 128 GB |
| Built-in processor | Yes |
| On-board graphics card model | ARM Mali-G52 |
| Processor architecture | ARM Cortex-A53+Cortex-A72 |
| Operating system version | 14 |
| Weight & dimensions | |
| Width | 1710 mm |
| Depth | 87 mm |
| Height | 1016 mm |
| Weight | 51.8 kg |
| Display width | 1710 mm |
| Display depth | 87 mm |
| Display height | 1016 mm |
| Display weight | 51.8 kg |
| Packaging data | |
| Package width | 1860 mm |
| Package depth | 185 mm |
| Package height | 1125 mm |
| Package weight | 63 kg |
| Quick start guide | Yes |
| Remote control included | Yes |
| Cables included | AC, USB, HDMI |

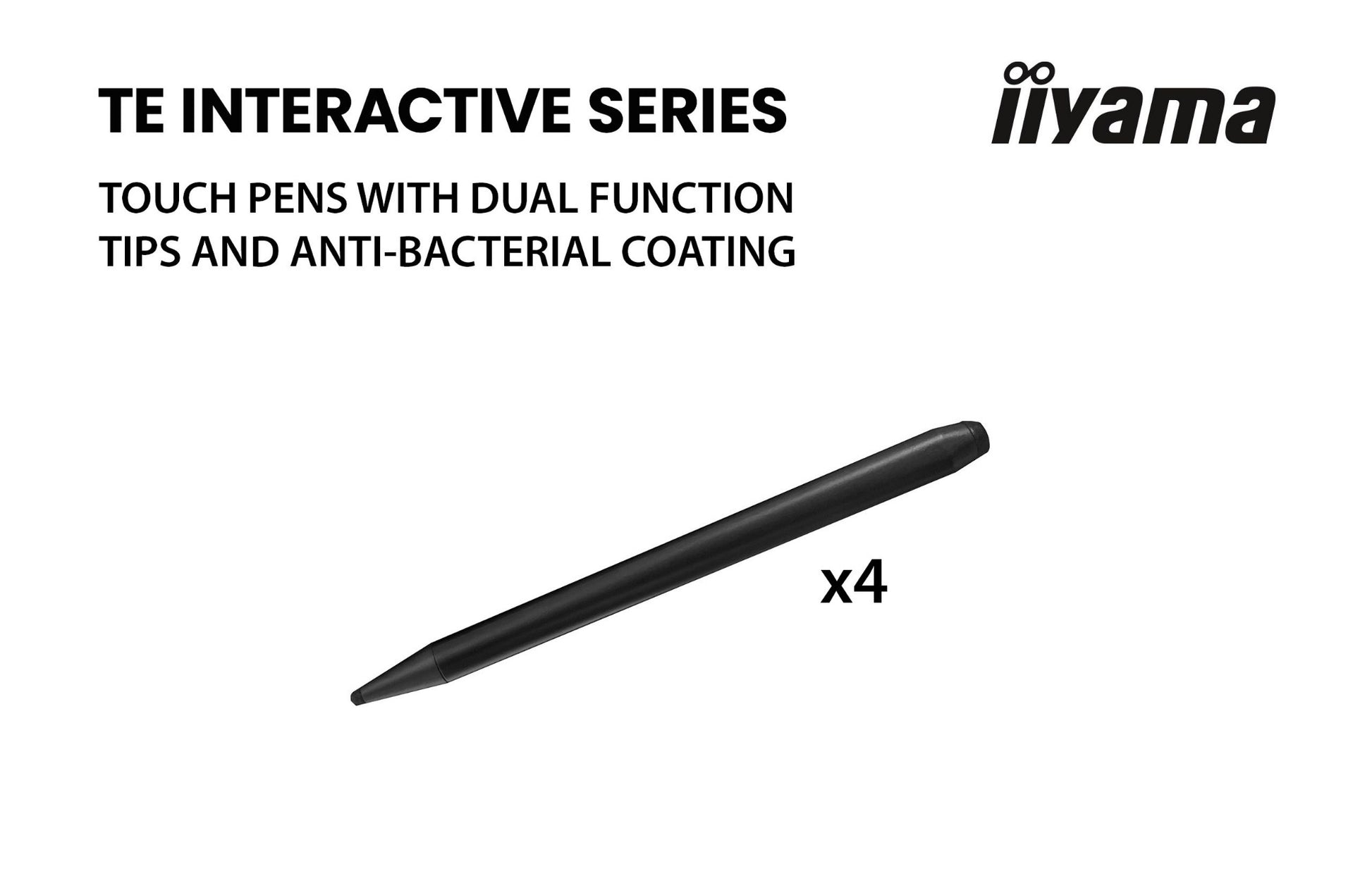

| Stylus pen | Yes |
| Number of stylus pens | 4 |
| Packaging content | |
| Quick start guide | Yes |
| Remote control included | Yes |
| Cables included | AC, USB, HDMI |
| Stylus pen | Yes |
| Number of stylus pens | 4 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Technical details | |
| VESA mounting | Yes |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| USB connector type | USB Type-A, USB Type-C, USB Type-B |
| Power supply type | Internal |
| Panel type | IPS |
| DisplayPort version | 1.2 |
| Brightness | 500 cd/m² |
| Number of simultaneous touchpoints | 40 |
| Audio in (mini jack) | Yes |
| OPS slot | 1 |
| Playback media | Yes |
| User controls | general settings (input, volume, backlight), audio (volume, bass, treble, balance, sound mode, mute), screen settings (aspect ratio, pixel shift), display settings (brightness, contrast, hue, sharpness, display mode colour temp), settings (wireless & networks, share, device, personal, system) |
| Sustainability certificates | ErP |
| Warranty period | 5 year(s) |
| Compliance certificates | CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE |
| Network | |
| Wi-Fi standards | Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11b, 802.11g, 802.11a |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Thin Client | |
| Operating system installed | Android |
| Internal memory | 8 GB |
| Internal storage capacity | 128 GB |
| Logistics data | |
| Products per pallet | 4 pc(s) |
| Other features | |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| USB connector type | USB Type-A, USB Type-C, USB Type-B |
| Power supply type | Internal |
| Panel type | IPS |
| DisplayPort version | 1.2 |
| Brightness | 500 cd/m² |
| Number of simultaneous touchpoints | 40 |
| Wi-Fi standards | Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11b, 802.11g, 802.11a |
| Wi-Fi | Yes |
| Mean time between failures (MTBF) | 50000 h |
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Yes |
| Bluetooth version | 5.0 |
| Bluetooth | Yes |
| Bezel width (top) | 1.65 cm |
| Bezel width (side) | 1.65 cm |
| Bezel width (bottom) | 4.1 cm |
| Quick start guide | Yes |
| Stylus pen | Yes |
| Number of stylus pens | 4 |
| Energy efficiency scale | A to G |
| OPS module slot | Yes |
