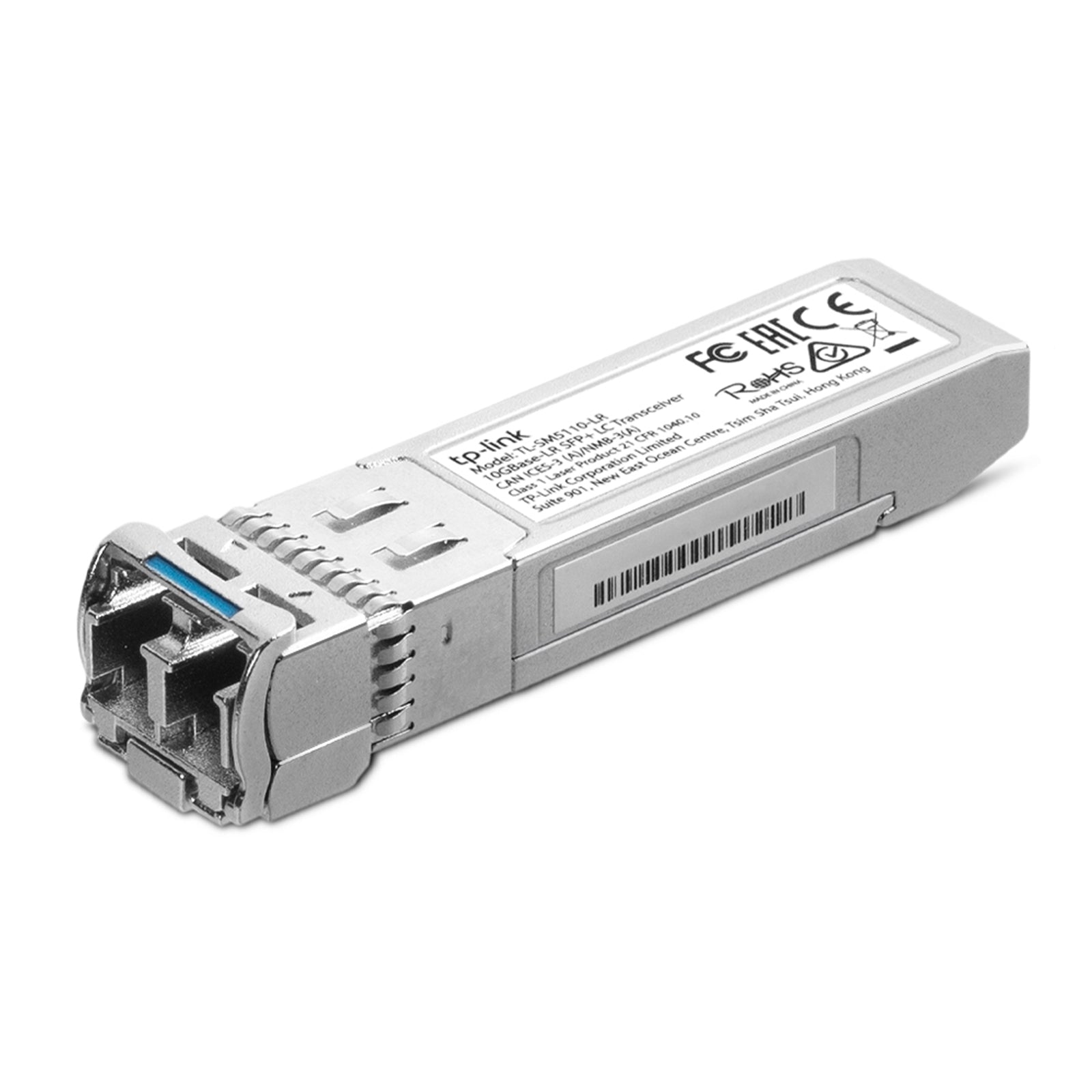

TP-Link TL-SM5110-LR 10GBase-LR SFP+ LC Single-Mode SFP Module
TP-Link TL-SM5110-LR 10GBase-LR SFP+ LC Single-Mode SFP Module
Regular price
£54.43 GBP
Regular price
Sale price
£54.43 GBP
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
What This Product Does
The TL-SM5110-LR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-LR high performance 1310 nm single-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.
Specifications
PACKAGE CONTENTS
Package Contents:
• 10G SFP+ Module TL-SM5110-LR
• Installation Guide
HARDWARE FEATURES
DDM:
Yes
SFP-MSA:
Yes
Hot Swappable:
Yes
MEDIA CONVERTER & MODULE
Dimensions (W*D*H):
2.2*0.5*0.4 in (56.7*13.9*10.35 mm)
TRANSCEIVER
Standards and Protocols:
IEEE 802.3ae, TCP/IP
Wave Length:
1310 nm
Power Supply:
3.3V
Fiber Type:
9/125um Single-Mode
Max. Cable Length:
10 km
Data Rate:
10 Gbps
Port Type:
LC Duplex
Safety & Emission:
FCC, CE
The TL-SM5110-LR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-LR high performance 1310 nm single-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.
Specifications
PACKAGE CONTENTS
Package Contents:
• 10G SFP+ Module TL-SM5110-LR
• Installation Guide
HARDWARE FEATURES
DDM:
Yes
SFP-MSA:
Yes
Hot Swappable:
Yes
MEDIA CONVERTER & MODULE
Dimensions (W*D*H):
2.2*0.5*0.4 in (56.7*13.9*10.35 mm)
TRANSCEIVER
Standards and Protocols:
IEEE 802.3ae, TCP/IP
Wave Length:
1310 nm
Power Supply:
3.3V
Fiber Type:
9/125um Single-Mode
Max. Cable Length:
10 km
Data Rate:
10 Gbps
Port Type:
LC Duplex
Safety & Emission:
FCC, CE
